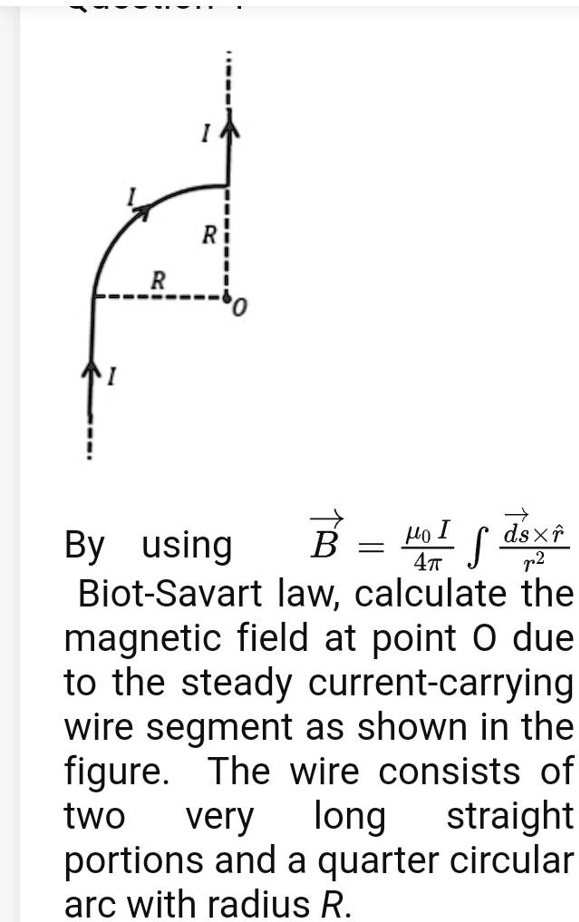

By using vec{B} = frac{mu_0 I}{4pi} int frac{vec{ds} imes hat{r}}{r^2} Biot-Savart law, calculate the magnetic field at point O due to the steady current-carrying wire segment as shown in the figure. The wire consists of two very long straight portions and a quarter circular arc with radius R.
Added by Jose Antonio B.
Close
Step 1
First, we need to find the magnetic field due to the straight wire segments. Since they are very long, we can use the formula for the magnetic field due to an infinite straight wire: $$B_{straight} = \frac{\mu_0 I}{2 \pi R}$$ Show more…
Show all steps
Your feedback will help us improve your experience
Narayan Hari and 76 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
$\cos ^{2} \frac{A}{2}+\cos ^{2} \frac{B}{2}+\cos ^{2} \frac{C}{2}=2+\frac{r}{2 R}$
If $A+B+C=\pi, e^{i \theta}=\cos \theta+i \sin \theta$ and $z=\left|\begin{array}{lll}e^{2 i A} & e^{-i C} & e^{-i B} \\ e^{-i C} & e^{2 i B} & e^{-i A} \\ e^{-i B} & e^{-i A} & e^{2 i C}\end{array}\right|$ then (A) $\operatorname{Re}(z)=4$ (B) $\operatorname{Im}(z)=0$ (C) $\operatorname{Re}(z)=-4$ (D) $\operatorname{Im}(z)=-1$
Calculate the magnetic field (magnitude and direction) at point P due to current I = 8.0 A in the wire shown in the Figure. Segment BC is an arc of a circle with a radius of 30.0 cm and point P is at the center of curvature of the arc. Segment DA is an arc of a circle with a radius of 20.0 cm, and point P is at its center of curvature. Segments CD and AB are straight lines of length 10.0 cm each. Hint: Use Biot-Savart's Law B = (μ0/4π) * (I * dl x r) / r^2
