Question

005 (part 1 of 3) 10.0 points The magnetic field over a certain range is given by B = Bx i + By j, where Bx = 3 T and By = 2 T. An electron moves into the field with a velocity v = vx i + vy j + vz k, where vx = 3 m/s, vy = 2 m/s and vz = 4 m/s. The charge on the electron is -1.602 x 10^-19 C. What is the i component of the force exerted on the electron by the magnetic field? Answer in units of N. 006 (part 2 of 3) 10.0 points What is the j component of the force? Answer in units of N. 007 (part 3 of 3) 10.0 points What is the k component of the force? Answer in units of N.

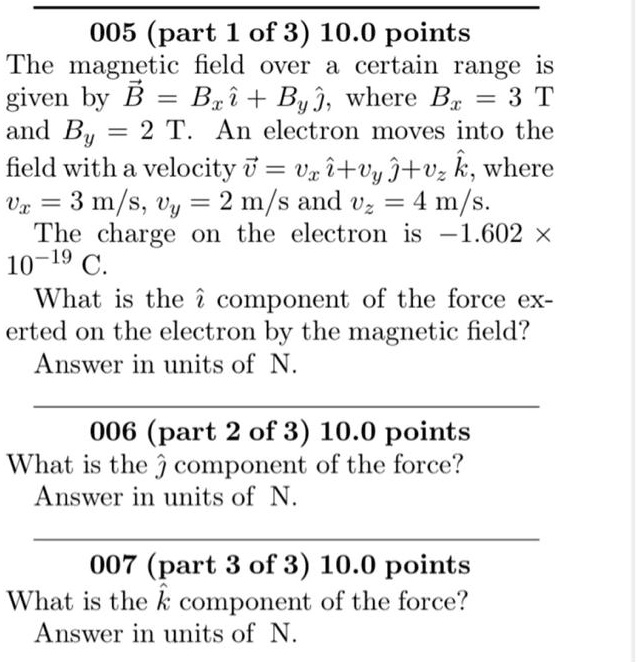

          005 (part 1 of 3) 10.0 points
The magnetic field over a certain range is given by B = Bx i + By j, where Bx = 3 T and By = 2 T. An electron moves into the field with a velocity v = vx i + vy j + vz k, where vx = 3 m/s, vy = 2 m/s and vz = 4 m/s.
The charge on the electron is -1.602 x 10^-19 C.
What is the i component of the force exerted on the electron by the magnetic field?
Answer in units of N.
006 (part 2 of 3) 10.0 points
What is the j component of the force?
Answer in units of N.
007 (part 3 of 3) 10.0 points
What is the k component of the force?
Answer in units of N.

005 (part 1 of 3) 10.0 points
The magnetic field over a certain range is given by B = Bx i + By j, where Bx = 3 T and By = 2 T. An electron moves into the field with a velocity v = vx i + vy j + vz k, where vx = 3 m/s, vy = 2 m/s and vz = 4 m/s.
The charge on the electron is -1.602 x 10^-19 C.
What is the i component of the force exerted on the electron by the magnetic field?
Answer in units of N.
006 (part 2 of 3) 10.0 points
What is the j component of the force?
Answer in units of N.
007 (part 3 of 3) 10.0 points
What is the k component of the force?
Answer in units of N.

Added by Tina M.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Sri K

05/23/2022

Step 1

Given: Velocity vector, V = 3i + 2j + 4k Magnetic field vector, B = 3i + 2j V x B = (VyBz - VzBy)i - (VxBz - VzBx)j + (VxBy - VyBx)k V x B = (2*0 - 4*2)i - (3*4 - 4*3)j + (3*2 - 2*3)k V x B = -8i - 12j + 6k Show more…

Show all steps
