3. (a) A spherical conducting shell of radius R is grounded. A point charge -Qo is placed inside the shell on the z axis at z = do from the center. 1) Write down the Poisson's equation. [1] ii) Calculate the value ($Q_1$) and position ($d_1$) of the image charge, which will satisfy both the Poisson's equation and the boundary condition. [4] iii) Calculate the potential inside the shell in terms of R, $Q_0$ and $d_0$. [1] iv) Calculate the induced surface charge density on the conductor. [4]
Added by Diana B.
Close
Step 1
Poisson's Equation: The Poisson's equation relates the Laplacian of the electric potential (V) to the charge density (ρ) in a given region of space. In three-dimensional Cartesian coordinates, the Poisson's equation is given by: ∇²V = -ρ/ε₀ where ∇² is the Show more…
Show all steps
Your feedback will help us improve your experience
Ma Ednelyn Lim and 91 other Physics 103 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

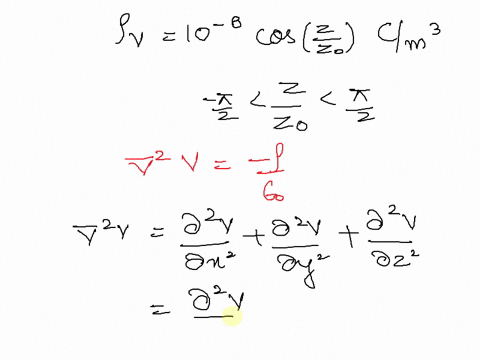

The region -π/2 < z < z0 < π/2 has a charge density ρv = 10^-8 cos (z/z0) C/m^3. Elsewhere, the charge density is zero. Find the potential V and electric field intensity E from Poisson's equation and compare the results given by Gauss' law.
Madhur L.

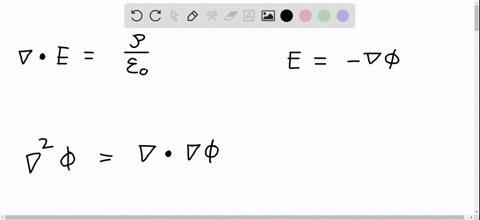

Gauss' law states that $\nabla \cdot \mathbf{E}=\frac{\rho}{\epsilon_{0}} .$ Here, $\mathbf{E}$ is an electrostatic field, $\rho$ is the charge density and $\epsilon_{0}$ is the permittivity. If E has a potential function $-\phi,$ derive Poisson's equation $\nabla^{2} \phi=-\frac{\rho}{\epsilon_{0}}$.
Vector Calculus
Curl and Divergence

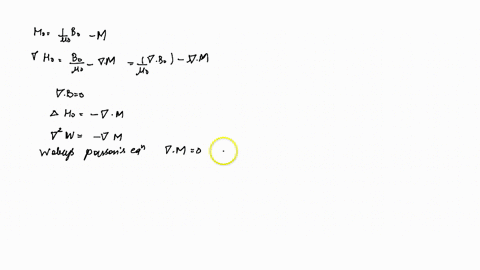

If $\mathbf{J}_{f}=0$ everywhere, the curl of $\mathbf{H}$ vanishes $(\mathrm{Eq} .6 .19),$ and we can express $\mathbf{H}$ as the gradient of a scalar potential $W$ $$\mathbf{H}=-\mathbf{\nabla} W$$ According to Eq. 6.23 , then $$\nabla^{2} W=(\nabla \cdot \mathbf{M})$$ so $W$ obeys Poisson's equation, with $\nabla \cdot \mathbf{M}$ as the "source." This opens up all the machiner? of Chapter $3 .$ As an example, find the field inside a uniformly magnetized sphere (Ex. 6.1 ) by separation of variables. [Hint: $\nabla \cdot \mathbf{M}=0$ everywhere except at the surface $(r=R),$ so $\mathbb{N}$ satisfies Laplace's equation in the regions $r < R$ and $r > R ;$ use Eq. $3.65,$ and from Eq. 6.24 figure out the appropriate boundary condition on $W$.]
