'03: If F2 150 Ib and 0 = 55" , determine the magnitude and direction measured clockwise from the positive x-axis of the resultant force of the three forces acting on the bracket'
Added by Janet S.
Step 1
For F1, it is given that it acts along the positive x-axis, so its components are: F1x = 150 lb F1y = 0 For F2, we need to find the components using the angle θ = 55°: F2x = F2 * cos(θ) = 150 * cos(55°) = 85.96 lb F2y = F2 * sin(θ) = 150 * sin(55°) = 122.47 Show more…
Show all steps
Your feedback will help us improve your experience
Sri K and 65 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

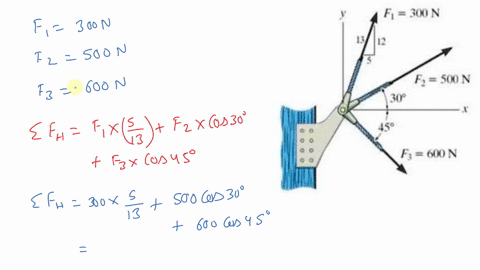

For three concurrent forces acting on a bracket, determine the magnitude and direction of the resultant force, measured counterclockwise from the positive x-axis.
Uma K.

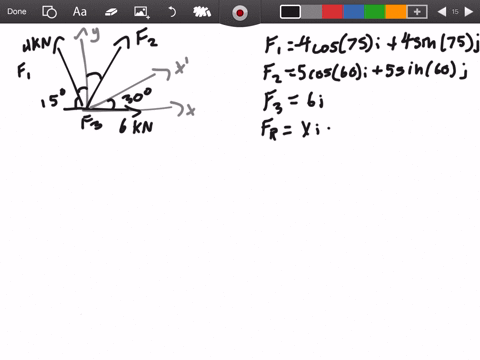

If $F=5 \mathrm{kN}$ and $\theta=30^{\circ},$ determine the magnitude of the resultant force and its direction, measured counterclockwise from the positive $x$ axis.

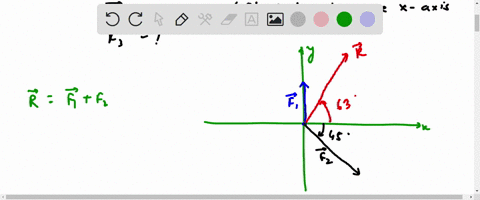

Three forces, when added, produce a resultant that is 100 N, pointing 63 degrees above the positive x-axis. If one of the forces is 50 N in the positive y-direction and another is 100 N in a direction 45 degrees below the positive x-axis, what are the magnitude and direction of the third force?
