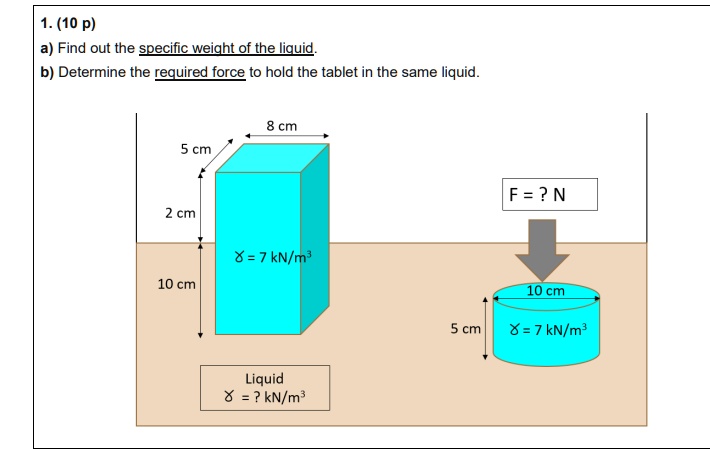

1. (10 p) a) Find out the specific weight of the liquid. b) Determine the required force to hold the tablet in the same liquid. 8 cm 5 cm 2 cm 10 cm $\gamma = 7 kN/m^3$ Liquid $\gamma = ? kN/m^3$ F = ? N 10 cm 5 cm $\gamma = 7 kN/m^3$
Added by Jennifer H.
Close
Step 1
The dimensions of the rectangular block are 8 cm, 5 cm, and 2 cm. Volume = length × width × height = 8 cm × 5 cm × 2 cm = 80 $cm^3$ = $80 \times 10^{-6} m^3$ The submerged height of the block is 2 cm = 0.02 m. Show more…
Show all steps
Your feedback will help us improve your experience
Prabhu Ramji and 87 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
(a) What is the weight density of a liquid that exerts a total force of $433 \mathrm{N}$ on the sides of a $3.00-\mathrm{m}$ -tall cylindrical tank? The radius of the tank is $0.913 \mathrm{m},$ and it is filled to $1.75 \mathrm{m}$. (b) What liquid might this be?

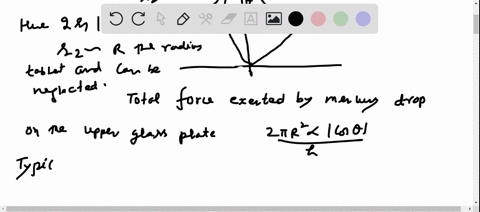

We must first calculate the pressure difference inside the film from that outside. This is Here $2 r_{1}|\cos \theta|=h$ and $r_{2} \sim-R$ the radius of the tablet and can be neglected. Thus the total force exerted by mercury drop on the upper glass plate is We should put $h / n$ for $h$ because the tablet is compresed $n$ times. Then since $H g$ is nearly, incompressible, $\pi R^{2} h=$ constants so $R \rightarrow R \sqrt{n}$. Thus, total force $=\frac{2 \pi R^{2} \alpha|\cos \theta|}{h} n^{2}$ Part of the force is needed to keep the $\mathrm{Hg}$ in the shape of a table rather than in the shape of infinitely thin sheet. This part can be calculated being putting $n=1$ above. Thus $m g+\frac{2 \pi R^{2} \alpha|\cos \theta|}{h}=\frac{2 \pi R^{2} \alpha|\cos \theta|}{h} n^{2}$ or $m=\frac{2 \pi R^{2} \alpha|\cos \theta|}{h g}\left(n^{2}-1\right)=0 \cdot 7 \mathrm{~kg}$
