Question

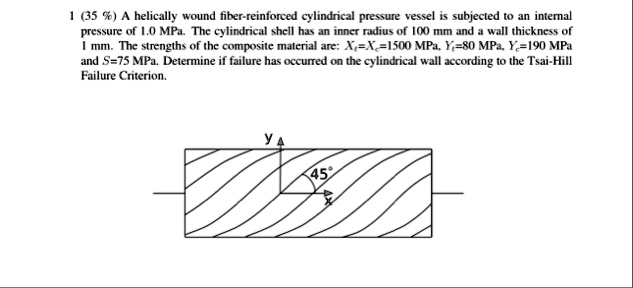

1 ( 35% ) A helically wound fiber-reinforced cylindrical pressure vessel is subjected to an internal pressure of 1.0 MPa . The cylindrical shell has an inner radius of 100 mm and a wall thickness of 1 mm . The strengths of the composite material are: x_(t)=x_(c)=1500MPa,Y_(t)=80MPa,Y_(c)=190MPa and S=75MPa. Determine if failure has occurred on the cylindrical wall according to the Tsai-Hill Failure Criterion.

Name: 1 35 a helically wound fiber reinforced cylindrical pressure vessel is subjected to an internal pressure of 10 mpa the cylindrical shell has an inner radius of 100 mm and a wall thickness of 97803
Uploaded: 2023-08-01T10:44:52-08:00
Duration: 2 min 7 s
Channel: Madhur L
Description: 1 35 a helically wound fiber reinforced cylindrical pressure vessel is subjected to an internal pressure of 10 mpa the cylindrical shell has an inner radius of 100 mm and a wall thickness of 97803

          1 ( 35% ) A helically wound fiber-reinforced cylindrical pressure vessel is subjected to an internal pressure of 1.0 MPa . The cylindrical shell has an inner radius of 100 mm and a wall thickness of 1 mm . The strengths of the composite material are: x_(t)=x_(c)=1500MPa,Y_(t)=80MPa,Y_(c)=190MPa and S=75MPa. Determine if failure has occurred on the cylindrical wall according to the Tsai-Hill Failure Criterion.

1 35 a helically wound fiber reinforced cylindrical pressure vessel is subjected to an internal pressure of 10 mpa the cylindrical shell has an inner radius of 100 mm and a wall thickness of 97803

Added by Eric W.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Madhur L

08/01/2023

Step 1

0 MPa. The cylindrical shell has an inner radius of 100 mm and a wall thickness of 1 mm. The strengths of the composite material are: $X_t=X_c=1500$ MPa, $Y_t=80$ MPa, $Y_c=190$ MPa and $S=75$ MPa. Determine if failure has occurred on the cylindrical wall according Show more…

Show all steps

Thanks for your feedback!

1 ( 35% ) A helically wound fiber-reinforced cylindrical pressure vessel is subjected to an internal pressure of 1.0 MPa . The cylindrical shell has an inner radius of 100 mm and a wall thickness of 1 mm . The strengths of the composite material are: x_(t)=x_(c)=1500MPa,Y_(t)=80MPa,Y_(c)=190MPa and S=75MPa. Determine if failure has occurred on the cylindrical wall according to the Tsai-Hill Failure Criterion.
