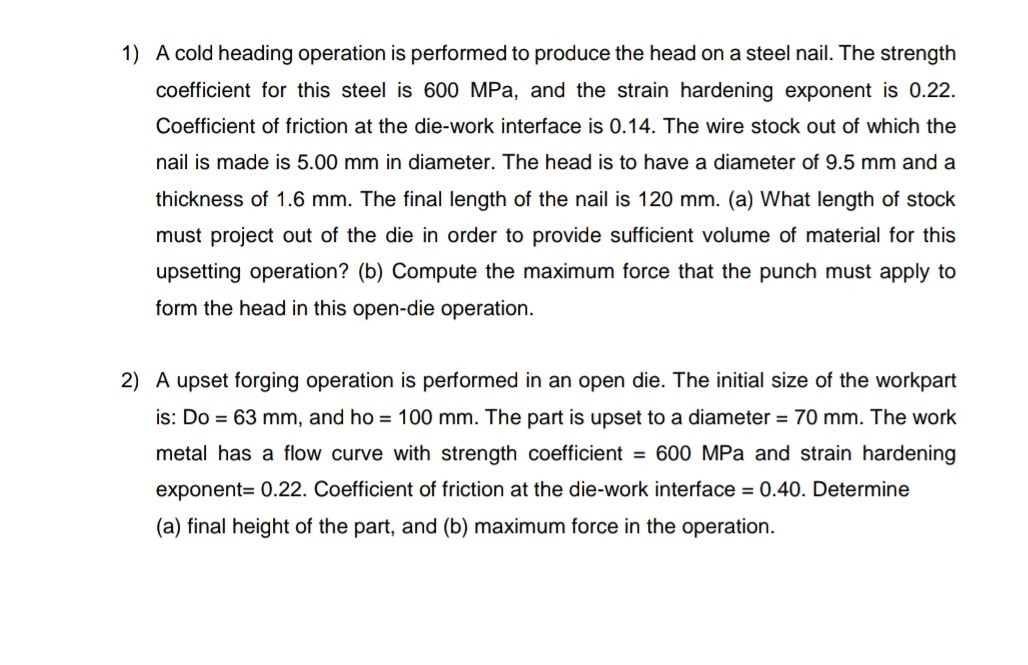

1) A cold heading operation is performed to produce the head on a steel nail. The strength coefficient for this steel is \( 600 \mathrm{MPa} \), and the strain hardening exponent is 0.22 . Coefficient of friction at the die-work interface is 0.14 . The wire stock out of which the nail is made is \( 5.00 \mathrm{~mm} \) in diameter. The head is to have a diameter of \( 9.5 \mathrm{~mm} \) and a thickness of \( 1.6 \mathrm{~mm} \). The final length of the nail is \( 120 \mathrm{~mm} \). (a) What length of stock must project out of the die in order to provide sufficient volume of material for this upsetting operation? (b) Compute the maximum force that the punch must apply to form the head in this open-die operation. 2) A upset forging operation is performed in an open die. The initial size of the workpart is: \( D o=63 \mathrm{~mm} \), and ho \( =100 \mathrm{~mm} \). The part is upset to a diameter \( =70 \mathrm{~mm} \). The work metal has a flow curve with strength coefficient \( =600 \mathrm{MPa} \) and strain hardening exponent \( =0.22 \). Coefficient of friction at the die-work interface \( =0.40 \). Determine (a) final height of the part, and (b) maximum force in the operation.
