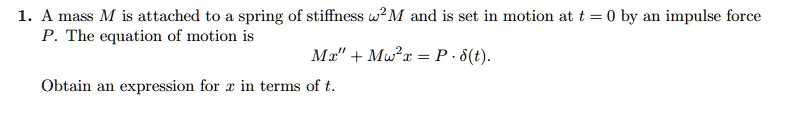

1. A mass M is attached to a spring of stiffness $\omega^2 M$ and is set in motion at $t = 0$ by an impulse force $P$. The equation of motion is $$Mx'' + M\omega^2 x = P \cdot \delta(t).$$ Obtain an expression for $x$ in terms of $t$.
Added by Melissa V.
Close
Step 1
$$M s^2 X(s) + M\omega^2 X(s) = P$$ $$X(s) (M s^2 + M\omega^2) = P$$ $$X(s) = \frac{P}{M(s^2 + \omega^2)}$$ Show more…
Show all steps
Your feedback will help us improve your experience
Carson Merrill and 99 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Consider a mass on a spring shown in FIGURE 3.5.1. In the absence of damping forces, the displacement (or directed distance) of the mass measured from a position called the equilibrium position is given by the function $$ x(t)=x_{0} \cos \omega t+\frac{v_{0}}{\omega} \sin \omega t $$ where $\omega=\sqrt{k / m}, k$ is the spring constant (an indicator of the stiffness of the spring), $m$ is the mass (measured in slugs or kilograms), $y_{0}$ is the initial displacement of the mass (measured above or below the equilibrium position), $\boldsymbol{v}_{0}$ is the initial velocity of the mass, and $t$ is time measured in seconds. (a) Verify that $x(t)$ satisfies the differential equation $$ \frac{d^{2} x}{d t^{2}}+\omega^{2} x=0 $$ (b) Verify that $x(t)$ satisfies the initial conditions $x(0)=x_{0}$ and $x^{\prime}(0)=v_{0}$.
The Derivative
Chain Rule
A simple harmonic oscillator, of mass $m$ and natural frequency $\omega_{0}$, experiences an oscillating driving force $f(t)=m a \cos \omega t .$ Therefore, its equation of motion is $$\frac{d^{2} x}{d t^{2}}+\omega_{0}^{2} x=a \cos \omega t$$ where $x$ is its position. Given that at $t=0$ we have $x=d x / d t=0,$ find the function $x(t) .$ Describe the solution if $\omega$ is approximately, but not exactly, equal to $\omega_{0}.$
Timothy J.
Consider the system in Figure $\mathrm{P} 2.8$, write the equation of motion and calculate the response assuming (a) that the system is initially at rest, and (b) that the system has an initial displacement of $0.04 \mathrm{~m}$.
