A step index multimode fiber with a numerical aperture of 0.2 supports approximately 1000 modes at an 850-nm wavelength. a) What is the diameter of its core? b) How many modes does the fiber support at 1320 nm? c) How many modes does the fiber support at 1550 nm?
Added by Johnny R.
Step 1
We are given $N = 1000$, $\lambda = 850 \ nm$, and $NA = 0.2$. We can rearrange the formula for $V$ to solve for $a$: $a = \frac{V \cdot \lambda}{2\pi \cdot NA}$ Show more…
Show all steps
Close
Your feedback will help us improve your experience
Madhur L and 69 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Sri K.
The core diameter of a multimode step index fiber is 100 µm and the fiber has a core and cladding refractive indices of 1.5 and 1.48, respectively. Given that the operating wavelength is 1300 nm and the fiber length is 6 km, determine the: Critical angle Numerical aperture V-parameter of the fiber Number of guided modes propagating within the fiber Phase velocity within the fiber
Adi S.

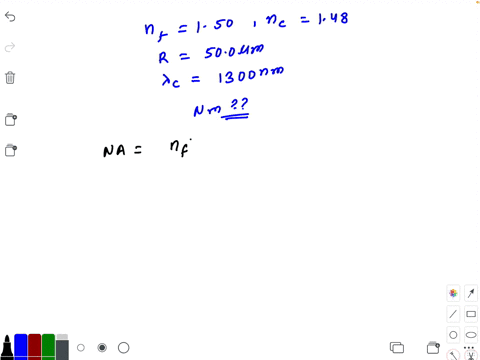

A multimode stepped-index glass fiber has a core index of 1.50 and a cladding index of 1.48 . Given that the core has a radius of $50.0 \mu \mathrm{m}$ and operates at a vacuum wavelength of $1300 \mathrm{nm}$, find the number of modes it sustains.
