1. An electrical circuit has a time domain model given by the differential equation $\frac{d^2V_o(t)}{dt^2} + 2\frac{dV_o(t)}{dt^2} + $ $2t = V_i(t)$. How many energy-storing devices does it have?
Added by Michael H.
Close
Step 1
The order of the differential equation is equal to the number of energy-storing devices in the circuit. Show more…
Show all steps
Your feedback will help us improve your experience
Breanna Ollech and 78 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
no need for video, final answer only
Breanna O.

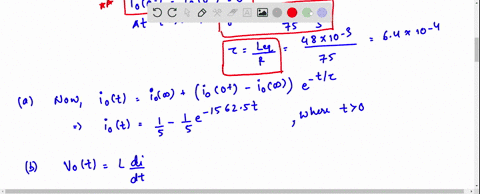

There is no energy stored in the circuit of Fig. $P 7.65$ at the time the switch is closed. a) Find $i_{o}(t)$ for $t \geq 0$ b) Find $v_{o}(t)$ for $t \geq 0^{+}$ c) Find $i_{1}(t)$ for $t \geq 0$ d) Find $i_{2}(t)$ for $t \geq 0$ e) Do your answers make sense in terms of known circuit behavior?
