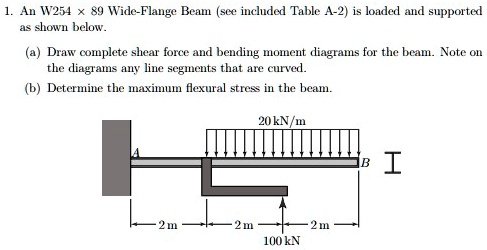

Here we are given a w25 cross 89 with flank beam.
00:06
So this is the beam we are given here.
00:09
Here is the point a.
00:11
Here the force of 20 kilo newton per meter is acting.
00:15
This is the point b.
00:20
From here this is attached to the point.
00:24
The distance between this and point a is 2 meter.
00:27
This to end its end is 2 meter and remaining distance to is 2 meter.
00:35
A force of 100 kilo newton is acting in the end point of this beam.
00:41
So here we have to draw the complete shear force diagram here.
00:45
So we are given this term.
00:48
So here in the first part of the quotient the bracelet can be replaced by the equivalent point, load and momentum at c.
00:59
So we are given the value of the equivalent load that is equals to let's say 100 kilo newton and equivalent momentum from here is equals to 100 which is multiplied by 2.
01:12
That is equals to 200 kilo newton meter.
01:16
So we are considering this diagram.
01:18
Let's say here is the point a.
01:19
Here is the point c.
01:20
Here is the point b.
01:22
This is the force which is acting on here.
01:24
This distance where the force of 80 kilo newton is acting to the end point b is 2 meter where the force of 20 kilo newton per meter is acting...
