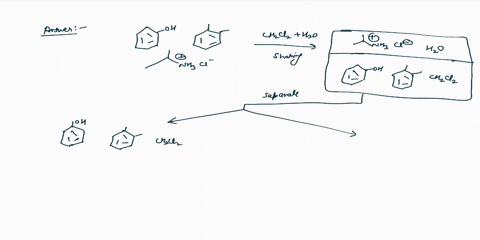

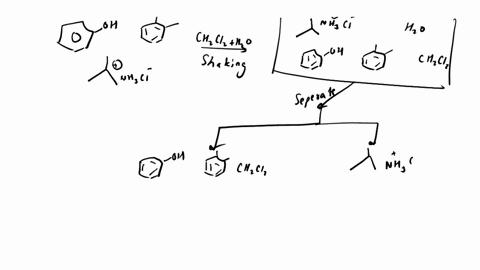

Below is an Extraction Flowchart for the separation of a three-component mixture. Several of the steps are missing, as well as several of the structures throughout the flowchart. Using the ChemDraw Template provided, fill in the missing steps and structures. In each step, be sure that all necessary reagents (organic solvents, aqueous solutions, drying agents) and manipulations (shaking/mixing, separating phases, filtering/decanting) are included in their proper order. Clearly indicate the structures of the compounds at each step in the process, and be sure to refer to Lab Manual Section 8.5 for an example of the format:
1. Add CH2Cl2
2. Add Mok
3. Missing structure
4. Allow Inyore
5. Separate
6. Missing structure
7. Add CHCl3
8. Separate aqueous layer
9. Missing structure
10. Missing text
11. Missing structure
12. Missing structure
13. Separate
14. Missing text
15. CHCl3
