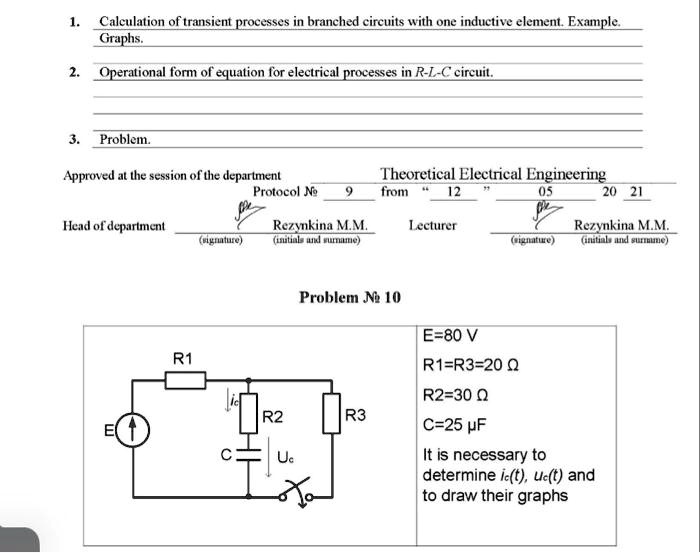

1. Calculation of transient processes in branched circuits with one inductive element. Example. Graphs. 2. Operational form of equation for electrical processes in R-L-C circuit. 3. Problem. Approved at the session of the department Theoretical Electrical Engineering Protocol ? 9 from " 12 " Head of department (signature) Rezynkina M.M. (initials and surname) Lecturer Problem ? 10 E=80 V R1=R3=20 ? R2=30 ? C=25 µF It is necessary to determine $i_c(t)$, $u_c(t)$ and to draw their graphs 05 20 21 (signature) Rezynkina M.M. (initials and surname)
