          1. Complete parts (a-c)

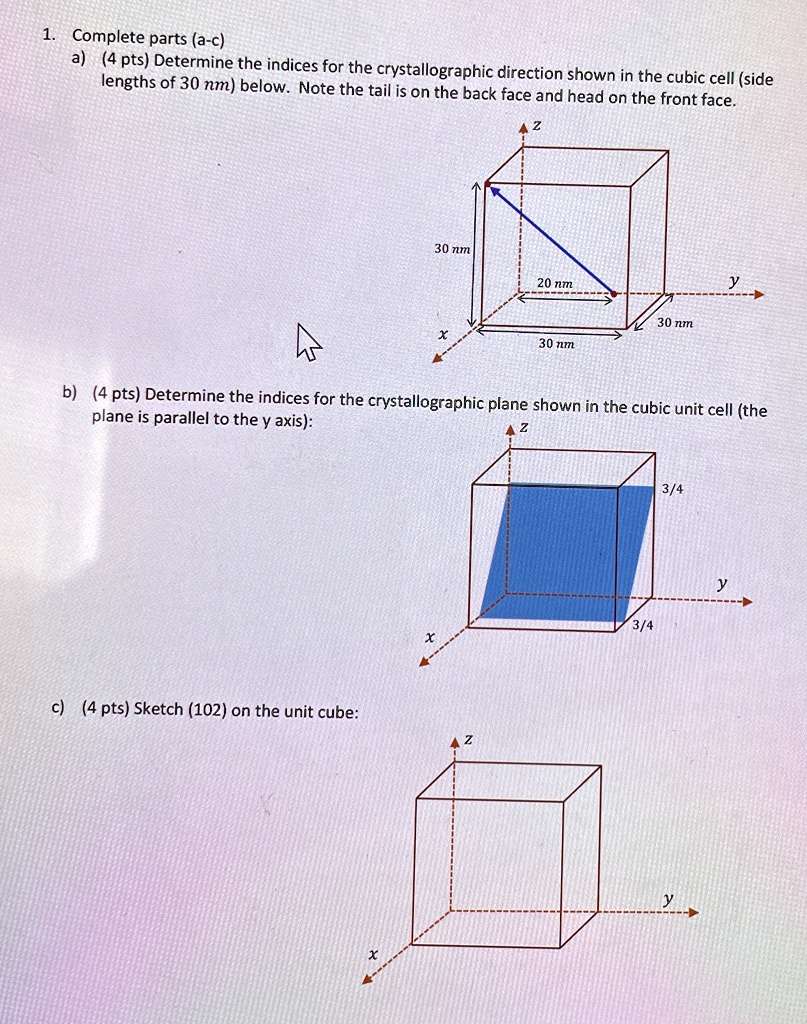

a) (4 pts) Determine the indices for the crystallographic direction shown in the cubic cell (side
lengths of 30 nm) below. Note the tail is on the back face and head on the front face.
AZ
30 nm
20 nm
y
----
30 nm
X
30 nm
b) (4 pts) Determine the indices for the crystallographic plane shown in the cubic unit cell (the
plane is parallel to the y axis):
AZ
3/4
y
3/4
x
c) (4 pts) Sketch (102) on the unit cube:
AZ
x
y

1 complete parts a c a 4 pts determine the indices for the crystallographic direction shown in the cubic cell side lengths of 30 nm below note the tail is on the back face and head on the fr 67163

Added by Lisa S.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Shaiju T

06/17/2022

Step 1

The tail of the vector is at (0, 0, 0) and the head is at (2/3, 1, 1). The vector components are: x: 20 nm / 30 nm = 2/3 y: 30 nm / 30 nm = 1 z: 30 nm / 30 nm = 1 Multiply by 3 to remove the fraction: x: 2 y: 3 z: 3 The crystallographic direction is [233]. Show more…
