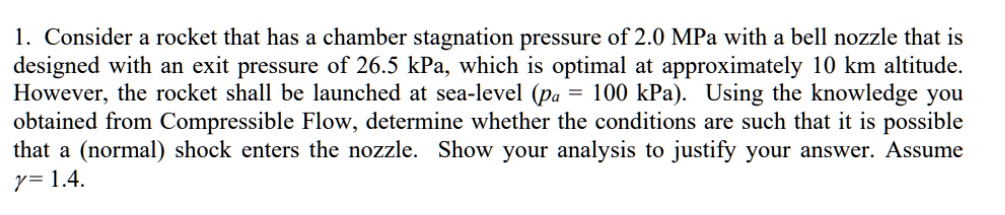

1. Consider a rocket that has a chamber stagnation pressure of 2.0 MPa with a bell nozzle that is designed with an exit pressure of 26.5 kPa, which is optimal at approximately 10 km altitude. However, the rocket shall be launched at sea-level (pa = 100 kPa). Using the knowledge you obtained from Compressible Flow, determine whether the conditions are such that it is possible that a (normal) shock enters the nozzle. Show your analysis to justify your answer. Assume ? = 1.4.
Added by Albert M.
Close
Step 1
The critical back pressure is the pressure at which the flow at the nozzle exit is sonic (M=1). The critical back pressure can be calculated using the following equation: Pbc = P0 * (2/(γ+1))^(γ/(γ-1)) where P0 is the chamber pressure and γ is the specific Show more…
Show all steps
Your feedback will help us improve your experience
Supreeta N and 81 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

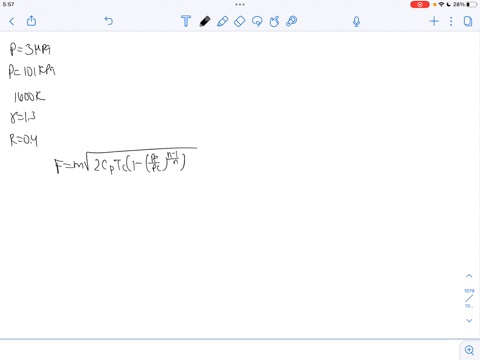

A rocket nozzle is designed to operate supersonically with chamber pressure of 3 MPa and an ambient pressure of 101 kPa. Find the ratio between the thrust at sea level to the thrust in space (0 kPa). Assume constant chamber pressure with a chamber temperature of 1600 K. Assume the rocket exhaust gases to behave as a perfect gas with ̳ = 1.3 and R = 0.4 kJ/kg.K.
Penny R.

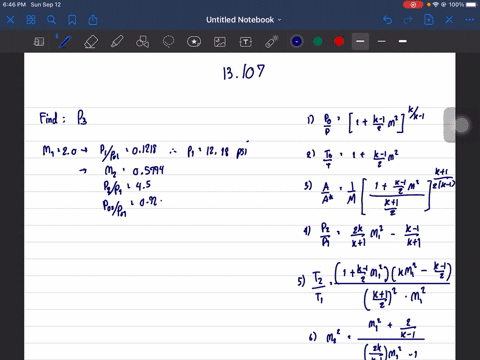

A normal shock occurs in the diverging section of a converging-diverging nozzle where $A=4.0$ in. $^{2}$ and $M=$ $2.00 .$ Upstream, $T_{0_{1}}=1000^{\circ} \mathrm{R}$ and $p_{0_{1}}=100$ psia. The nozzle exit area is 6.0 in. $^{2}$ Assume that flow is isentropic except across the shock. Find the nozzle exit pressure. Show the processes on a $T s$ diagram, and indicate the static and stagnation state points.

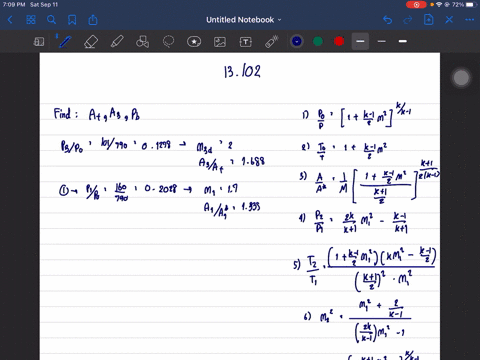

A converging-diverging nozzle is designed to expand air isentropically to atmospheric pressure from a large tank, where $T_{0}=150^{\circ} \mathrm{C}$ and $p_{0}=790 \mathrm{kPa}(\text { abs }) .$ A normal shock stands in the diverging section, where $p=160 \mathrm{kPa}(\text { abs })$ and $A=600 \mathrm{mm}^{2} .$ Determine the nozzle back pressure, exit area, and throat area.
