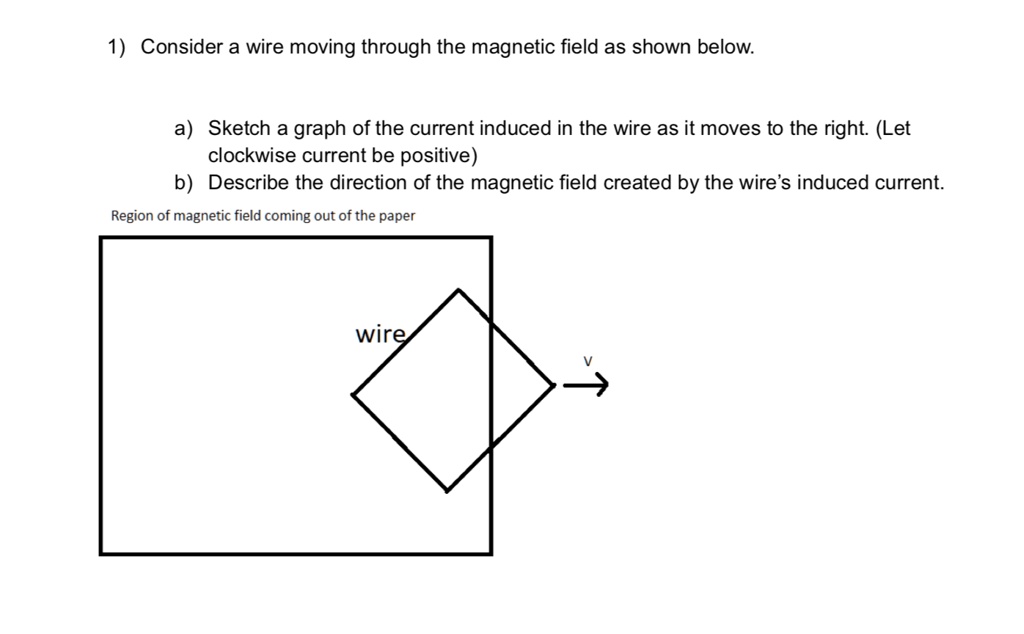

1) Consider a wire moving through the magnetic field as shown below. a) Sketch a graph of the current induced in the wire as it moves to the right. (Let clockwise current be positive) b) Describe the direction of the magnetic field created by the wire’s induced current. Region of magnetic field coming out of the paper wire v

          1) Consider a wire moving through the magnetic field as shown below.

a) Sketch a graph of the current induced in the wire as it moves to the right. (Let clockwise current be positive)
b) Describe the direction of the magnetic field created by the wire’s induced current.
Region of magnetic field coming out of the paper
wire
v

1) Consider a wire moving through the magnetic field as shown below.

a) Sketch a graph of the current induced in the wire as it moves to the right. (Let clockwise current be positive)
b) Describe the direction of the magnetic field created by the wire’s induced current.
Region of magnetic field coming out of the paper
wire
v

Added by Marc T.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Sri K

05/11/2022

Step 1

Since the wire is moving to the right, the induced current will be in the clockwise direction. Therefore, the graph of the current induced in the wire will start at 0, increase in the positive direction, and then decrease back to 0. ** Show more…
