Question

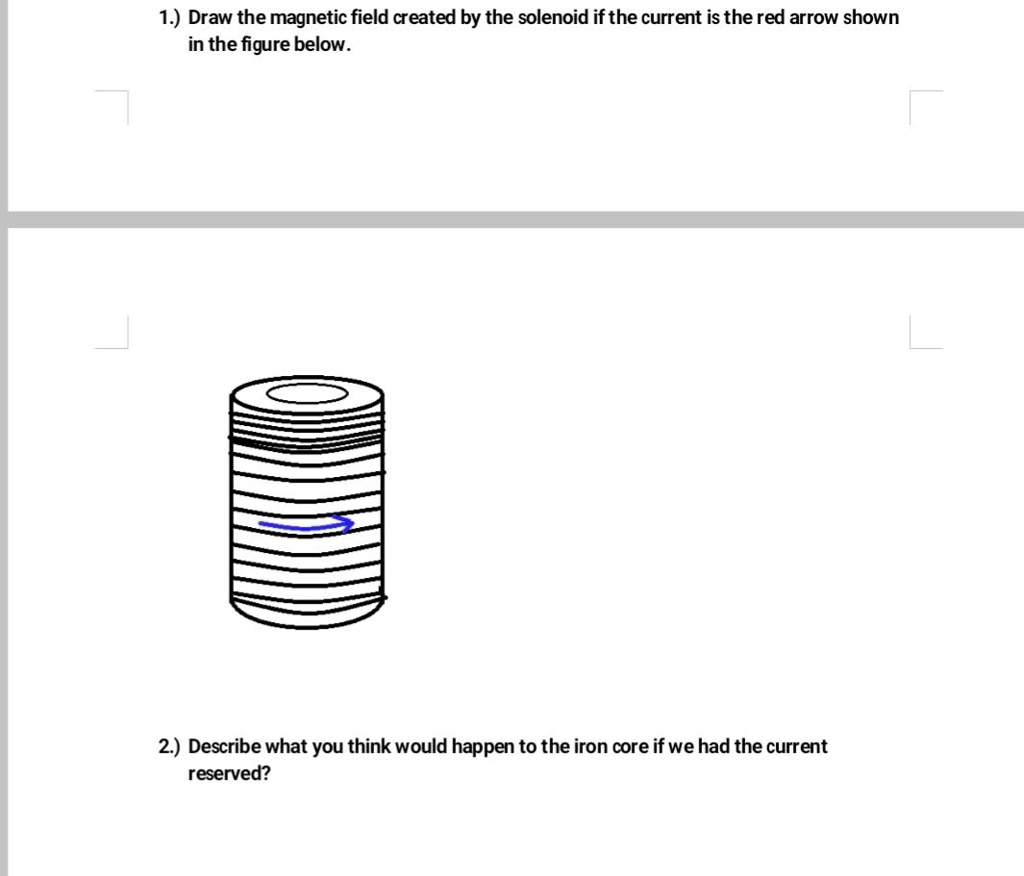

1.) Draw the magnetic field created by the solenoid if the current is the red arrow shown in the figure below. 2.) Describe what you think would happen to the iron core if we had the current reversed?

          1.) Draw the magnetic field created by the solenoid if the current is the red arrow shown in the figure below.
2.) Describe what you think would happen to the iron core if we had the current reversed?

1.) Draw the magnetic field created by the solenoid if the current is the red arrow shown in the figure below.
2.) Describe what you think would happen to the iron core if we had the current reversed?

Added by Gabriel V.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Adi S

09/04/2023

Step 1

Since the current is flowing in the direction of the red arrow, the magnetic field lines will be in a clockwise direction when looking at the solenoid from the right side. The magnetic field inside the solenoid will be uniform and parallel to the axis of the Show more…
