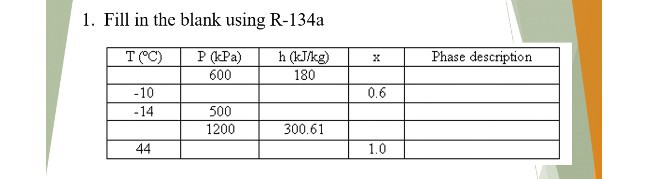

1. Fill in the blank using R-134a \begin{tabular}{|c|c|c|c|c|} \hline \( \mathrm{T}\left({ }^{\circ} \mathrm{C}\right) \) & \( \mathrm{P}(\mathrm{kPa}) \) & \( \mathrm{h}(\mathrm{kJ} / \mathrm{kg}) \) & x & Phase description \\ \hline & 600 & 180 & & \\ \hline-10 & & & 0.6 & \\ \hline-14 & 500 & & & \\ \hline & 1200 & 300.61 & & \\ \hline 44 & & & 1.0 & \\ \hline \end{tabular}
Added by Linda S.
Close
Step 1
For the first row, we have pressure and enthalpy. We can use the R-134a tables to find the temperature and phase. Looking up 600 kPa and 180 kJ/kg in the tables, we find that the temperature is approximately 35°C. The phase is superheated vapor since the enthalpy Show more…
Show all steps
Your feedback will help us improve your experience
Prabhat Tyagi and 78 other Microeconomics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Complete this table for refrigerant-134a: $$ \begin{array}{cccc} \hline T,{ }^{\circ} \mathrm{C} & P, \mathrm{kPa} & u, \mathrm{~kJ} / \mathrm{kg} & \text { Phase description } \\ \hline 20 & & 95 & \\ -12 & & & \text { Saturated liquid } \\ & 400 & 300 & \\ 8 & 600 & & \\ \hline \end{array} $$
Complete this table for refrigerant-134a: $$\begin{array}{|llll|} \hline T,^{\circ} \mathrm{C} & P, \mathrm{kPa} & \mathrm{v}, \mathrm{m}^{3 / \mathrm{kg}} & \text { Phase description } \\ \hline-4 & 320 & & \\ 10 & & 0.0065 & \\ & 850 & & \text { Saturated vapor } \\ 90 & 600 & & \\ \hline \end{array}$$

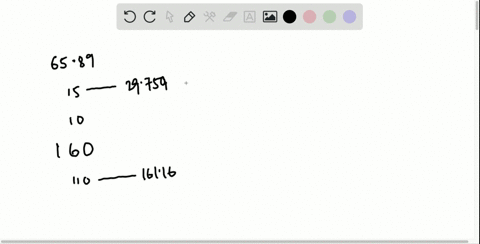

Complete this table for refrigerant- 134 a: $$\begin{array}{|rcccc} \hline T,^{\circ} \mathrm{F} & P, \text { psia } & h, \text { Btu/lbm } & x & \text { Phase description } \\ \hline & 80 & 78 & & \\ 15 & & & 0.6 & \\ 10 & 70 & & & \\ & 180 & 129.46 & & \\ 110 & & & 1.0 & \\ \hline \end{array}$$
