Z-axis 1. Find the magnetic field at a distance z above the center of the loop of a rectangular loop having sides of length 2a and 2b as shown. The loop lies in the x-y plane, and carries current I -b Z X axis -a +b Y axis
Added by Michelle G.
Close
Step 1
First, we need to determine the direction of the magnetic field at the point above the center of the loop. Since the loop carries current in the x-y plane, the magnetic field will be perpendicular to the plane of the loop and will point in the z-direction. Show more…
Show all steps
Your feedback will help us improve your experience
Anand Jangid and 55 other Physics 103 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

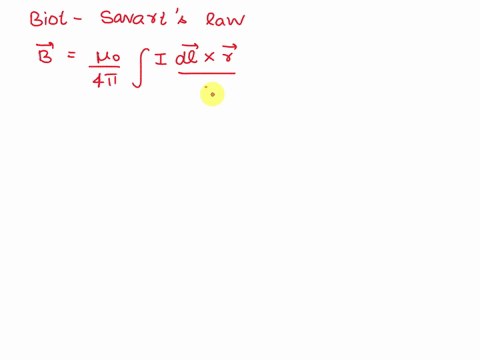

A square wire loop of side length 2b carries a current circulating in the counterclockwise direction. The loop lies in the xy plane, centered at the origin, and with the sides either parallel or perpendicular to the x-axis, as shown below: (c) Calculate the magnetic field B at the point A = (0, 0, z). You may use the following integration formula without proof: integral from -b to b of dy / (b^2 + y^2 + z^2)^(3/2) = 2b / ((b^2 + z^2) * sqrt(2a^2 + z^2))
Madhur L.

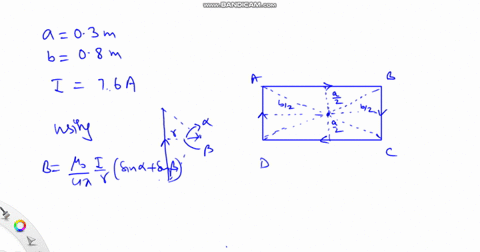

A rectangular loop of wire with sides a and b is placed in the xy plane. The loop carries current I Calculate the magnetic field at the center of the loop I=7.6 Ampere a=0.3 meter b=0.8 meter
Vishal G.

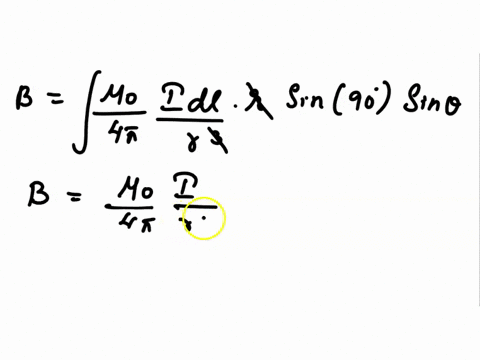

Q3. Consider a circular loop of radius a, carrying a current I. Let the circular loop be in the yz-plane centered at the origin. Determine the magnitude and direction of the magnetic field at the point (x, 0, 0) on the x-axis. Looking from a positive x point the current I in the loop is clockwise.
