Question

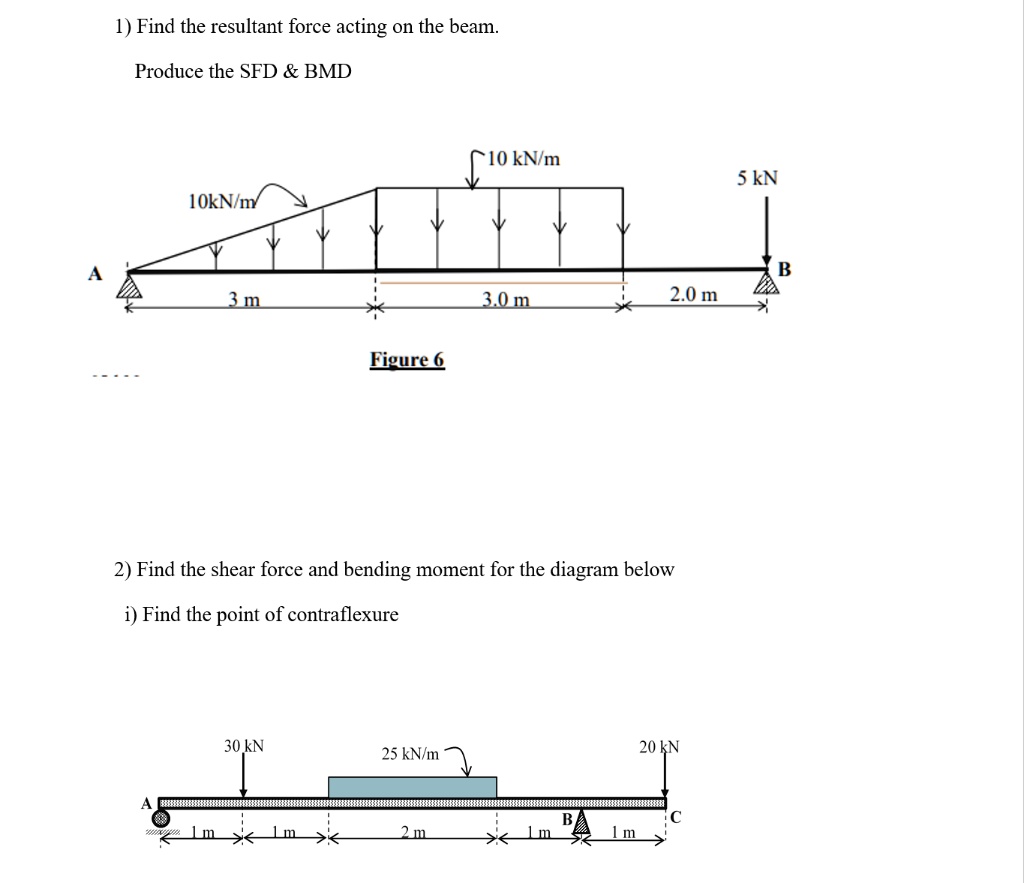

1) Find the resultant force acting on the beam. Produce the SFD & BMD 10 kN/m 10 kN/m 5 kN A B 3 m 3.0 m 2.0 m Figure 6 2) Find the shear force and bending moment for the diagram below i) Find the point of contraflexure 30 kN 25 kN/m 20 kN A B C 1 m 1 m 2 m 1 m 1 m

          1) Find the resultant force acting on the beam.
Produce the SFD & BMD
