1. For the electrical circuit shown below: (a) Write the state equations in matrix form. (b) For C = 1, R = 2, and L = 4, find the system eigenvalues and eigenvectors. (c) By simply inspecting the eigenvalues, identify the damped natural frequency, ?d. (d) Again using the eigenvalues, determine the time for the transient response of the system to decay by 90% (i.e. for the homogeneous solution to become roughly 10% of it's initial value)?
Added by Daniel R.
Close
Step 1
(a) State equations: \begin{aligned} & E_{ij} & = & -{\beta _i} R_{ij} + I_{ji} \\ & {} & {} & {} \\ & & 0 & {} \\ \end{aligned} Show more…
Show all steps
Your feedback will help us improve your experience
Madhur L and 99 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Find the steady-state current I(t) in the RLC-circuit in Fig. 275, where R = 10 ̐, L = 1 H, C = 10ⁱ F and with E(t) V as follows and periodic with period 2̐. Graph or sketch the first four partial sums. Note that the coefficients of the solution decrease rapidly. Hint. Remember that the ODE contains E'(t), not E(t), cf. Sec. 2.9. 17. E(t) = { -50t" if -̐ < t < 0 50t" if 0 < t < ̐
Adi S.

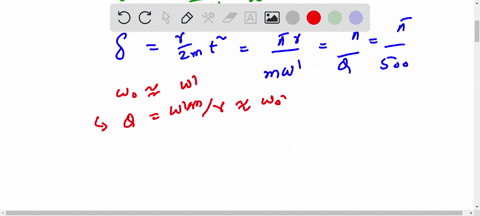

The frequency of a damped simple harmonic oscillator is given by $$ \omega^{\prime 2}=\frac{s}{m}-\frac{r^{2}}{4 m^{2}}=\omega_{0}^{2}-\frac{r^{2}}{4 m^{2}} $$ (a) If $\omega_{0}^{2}-\omega^{\prime 2}=10^{-6} \omega_{0}^{2}$ show that $Q=500$ and that the logarithmic decrement $\delta=\pi / 500$. (b) If $\omega_{0}=10^{6}$ and $m=10^{-10} \mathrm{Kg}$ show that the stiffness of the system is $100 \mathrm{~N} \mathrm{~m}^{-1}$, and that the resistive constant $r$ is $2 \times 10^{-7} \mathrm{~N} \cdot \mathrm{sm}^{-1}$. (c) If the maximum displacement at $t=0$ is $10^{-2} \mathrm{~m}$, show that the energy of the system is $5 \times 10^{-3}$ $\mathrm{J}$ and the decay to $\mathrm{e}^{-1}$ of this value takes $0.5 \mathrm{~ms}$. (d) Show that the energy loss in the first cycle is $2 \pi \times 10^{-5} \mathrm{~J}$.

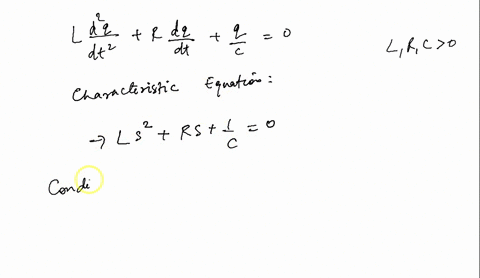

The damped LCR circuit is governed by the equation L * R * dq/dt + 9 = 0 where L, R, and C are positive constants. Find the conditions under which the circuit is over-damped, under-damped, and critically damped. Also, find the critical resistance (URTU, 2005).
