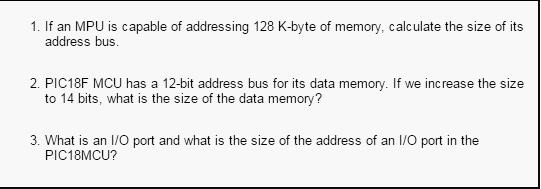

1. If an MPU is capable of addressing 128 K-byte of memory, calculate the size of its address bus. 2. PIC18F MCU has a 12-bit address bus for its data memory. If we increase the size to 14 bits, what is the size of the data memory? 3. What is an I/O port and what is the size of the address of an I/O port in the PIC18MCU?
Added by Elizabeth V.
Close
Step 1
To calculate the size of the address bus, we need to determine the number of addressable locations. Since the MPU is capable of addressing 128 K-byte of memory, we can convert this to bits by multiplying it by 1024 (to convert from K-byte to byte) and then by 8 Show more…
Show all steps
