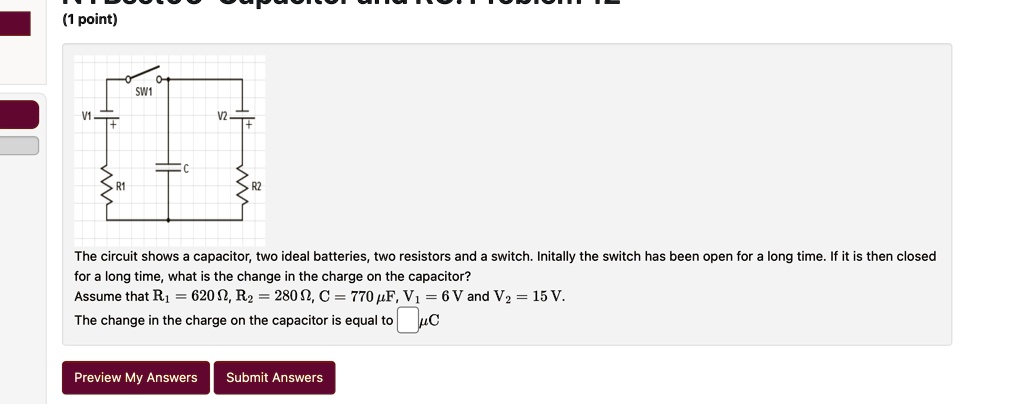

(1 point) SW1 V1 V2 R1 C R2 The circuit shows a capacitor, two ideal batteries, two resistors and a switch. Initially the switch has been open for a long time. If it is then closed for a long time, what is the change in the charge on the capacitor? Assume that $R_1 = 620 \, \Omega$, $R_2 = 280 \, \Omega$, $C = 770 \, \mu F$, $V_1 = 6 \, V$ and $V_2 = 15 \, V$. The change in the charge on the capacitor is equal to $\mu C$ Preview My Answers Submit Answers

Name: 1 point sw1 v1 v2 r1 c r2 the circuit shows a capacitor two ideal batteries two resistors and a switch initially the switch has been open for a long time if it is then closed for a long time 33158
Uploaded: 2022-12-01T08:00:11-08:00
Duration: 2 min 55 s
Channel: Adi S
Description: 1 point sw1 v1 v2 r1 c r2 the circuit shows a capacitor two ideal batteries two resistors and a switch initially the switch has been open for a long time if it is then closed for a long time 33158

          (1 point)
SW1
V1
V2
R1
C
R2
The circuit shows a capacitor, two ideal batteries, two resistors and a switch. Initially the switch has been open for a long time. If it is then closed for a long time, what is the change in the charge on the capacitor?
Assume that $R_1 = 620 \, \Omega$, $R_2 = 280 \, \Omega$, $C = 770 \, \mu F$, $V_1 = 6 \, V$ and $V_2 = 15 \, V$.
The change in the charge on the capacitor is equal to $\mu C$
Preview My Answers
Submit Answers

1 point sw1 v1 v2 r1 c r2 the circuit shows a capacitor two ideal batteries two resistors and a switch initially the switch has been open for a long time if it is then closed for a long time 33158

Added by Amber L.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Adi S

12/01/2022

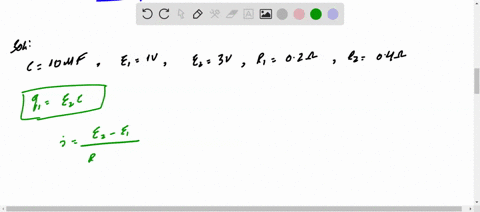

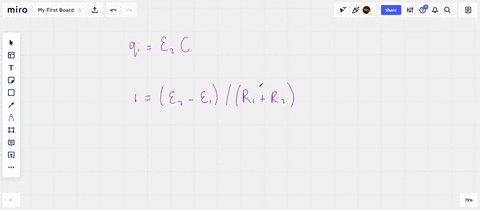

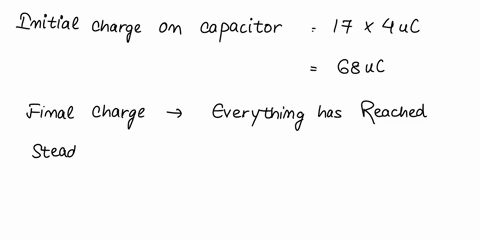

Step 1

We need to find the change in charge on the capacitor when the switch is initially open for a long time and then closed for a long time. "Long time" implies that the capacitor acts as an open circuit (fully charged) in DC steady state. **Given Values:** * $R_1 Show more…
