1. Question No (1) The solid shaft shown is formed of a brass for which the allowable shearing stress is 55 MPa. Neglecting the effect of stress concentrations, determine the smallest diameters AB and BC for which the allowable shearing stress is not exceeded. $T_B = 1200 N \cdot m$ $T_C = 400 N \cdot m$ $d_{AB}$ $d_{BC}$ 750 mm 600 mm

Name: 1 question no 1 the solid shaft shown is formed of a brass for which the allowable shearing stress is 55 mpa neglecting the effect of stress concentrations determine the smallest diameters a 74164
Uploaded: 2022-10-07T04:08:15-08:00
Duration: 3 min 21 s
Channel: Madhur L
Description: 1 question no 1 the solid shaft shown is formed of a brass for which the allowable shearing stress is 55 mpa neglecting the effect of stress concentrations determine the smallest diameters a 74164

          1. Question No (1)
The solid shaft shown is formed of a brass for which the
allowable shearing stress is 55 MPa. Neglecting the effect
of stress concentrations, determine the smallest diameters
AB and BC for which the allowable shearing stress is not
exceeded.
$T_B = 1200 N \cdot m$
$T_C = 400 N \cdot m$
$d_{AB}$
$d_{BC}$
750 mm
600 mm

1 question no 1 the solid shaft shown is formed of a brass for which the allowable shearing stress is 55 mpa neglecting the effect of stress concentrations determine the smallest diameters a 74164

Added by Alejandro S.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Madhur L

10/07/2022

Step 1

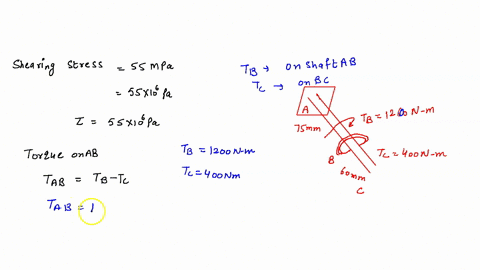

For segment BC, the internal torque $T_{BC}$ is equal to the applied torque at C, which is $T_C = 400 N \cdot m$. For segment AB, the internal torque $T_{AB}$ is equal to the sum of the torques at B and C, which is $T_B + T_C = 1200 N \cdot m + 400 N \cdot m = Show more…
