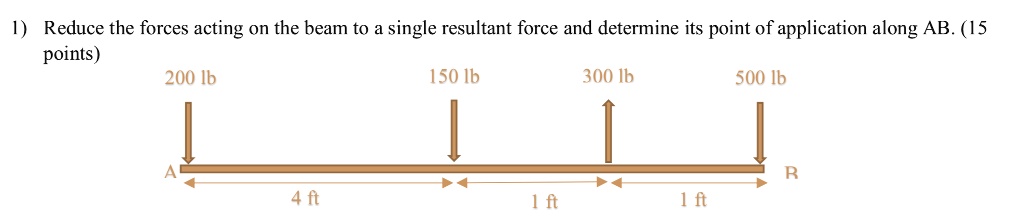

1) Reduce the forces acting on the beam to a single resultant force and determine its point of application along AB. (15 points) 200 lb 150 lb 300 lb 500 lb A B 4 ft 1 ft 1 ft
Added by John J.
Close
Step 1
Given forces: - 200 lb downward - 150 lb downward - 300 lb upward - 500 lb downward Net force = -200 lb - 150 lb + 300 lb - 500 lb Net force = -550 lb Show more…
Show all steps
Your feedback will help us improve your experience
Supratim Pal and 66 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Replace the force and couple moment system acting on the beam by an equivalent resultant force and find where its line of action intersects the beam, measured from point A.
Sri K.
Determine the resultant force and specify where it acts on the beam measured from A. (10 8 kN/m 5 kN/m 4.5 m 1.5 m
Determine the single equivalent force and the distance from point $A$ to its line of action for the beam and loading of $(a)$ Prob. $3.101 a$, (b) Prob. $3.101 b,(c)$ Prob. $3.102 .$
