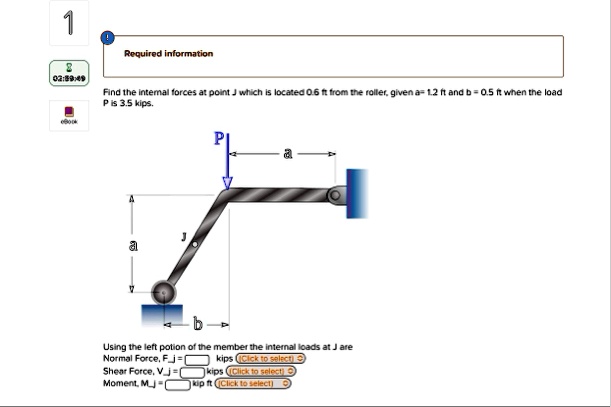

1 Required information 02:09:49 Find the internal forces at point J which is located 0.6 ft from the roller, given a = 1.2 ft and b = 0.5 ft when the load P is 3.5 kips. P a J a b Using the left potion of the member the internal loads at J are Normal Force, F_J = kips (Click to select) Shear Force, V_J = kips (Click to select) Moment, M_J = kip ft (Click to select)
