1. State the reading of the vernier caliper and the micrometer screw gauge below. (Write the calculations of reading) MAIN SCALE VERNIER SCALE (each division on the vernier scale is 0.02) 35 30 25 (each division on the thimble is 0.01)
Added by Amy E.
Close
Step 1
The main scale reading is 35 mm. The vernier scale has divisions of 0.02 mm. Show more…
Show all steps
Your feedback will help us improve your experience
Sri K and 55 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

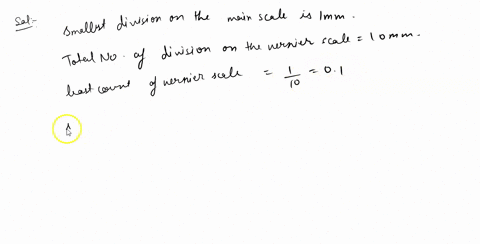

A vernier caliper has the main scale graduated in mm and a total number of divisions on its vernier scale is 10. While measuring the length of a small pencil with it, the main scale reads 42 divisions and the seventh division of the vernier scale coincides with a main scale division. Calculate: i. least count of the vernier scale, ii. main scale reading, iii. vernier scale reading, and iv. the length of the pencil.
Sri K.

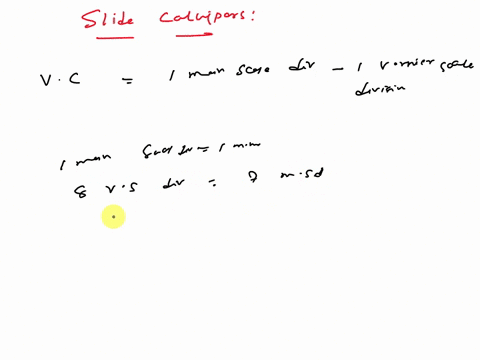

Reading the vernier caliper Step 1: Find the hash mark on the ruler that perfectly aligns with or lies just to the millimeter measurement. Step 2: Looking from left to right from the 0 hash mark, find the vernier hash mark on the vernier slide. This is the value in tenths of a millimeter (after the decimal point). Step 3: Add the whole value together with the tenths value and you'll have the reading. Step 3: How many millimeters does the vernier caliper indicate? 21 mm.
