Two frames {A} and {B} are initially coincident. Frame {B} undergoes the following four motions in sequence with respect to axes of frame {A}: - A rotation of θ about the z-axis. - A translation of d along the z-axis. - A translation of a along the x-axis. - A rotation of α about the x-axis. Determine the final homogeneous transformation matrix to describe frame {B} after the transformations, with respect to the frame {A}.
Added by Cheryl Z.
Step 1
A rotation of θ about the z-axis. The homogeneous transformation matrix for this operation is: Rz(θ) = [[cos(θ), -sin(θ), 0, 0], [sin(θ), cos(θ), 0, 0], [0, 0, 1, 0], [0, 0, 0, 1]] Show more…
Show all steps
Close
Your feedback will help us improve your experience
Andreas Papavassiliou and 63 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

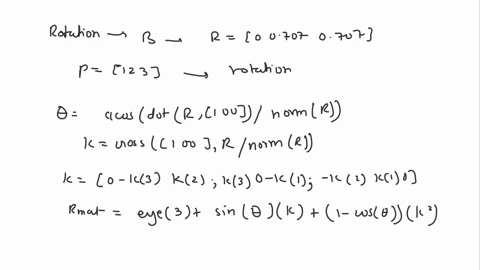

A frame {B} is described as initially coincident with frame {A}. We first rotate it about the vector R=[0 0.707 0.707] passing through the point p=[1 2 3] and then translate it by 10 units along the x-axis and then (Your registration number) units along the z-axis of the universal frame. Give the frame description of {B} after these transformations?
Sri K.

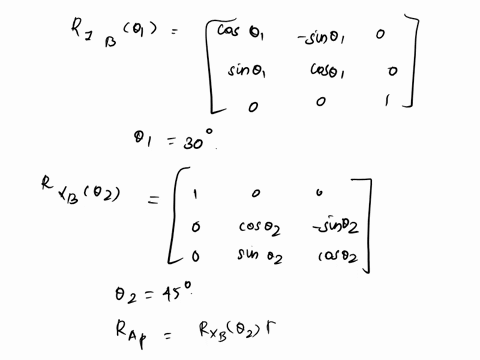

Q2 – A frame {B} is located initially coincident with a frame {A}. We rotate {B} about ZB by 30 degrees, then we rotate the resulting frame about XB by 45 degrees. Give the rotation matrix that will change the description of vectors from BP to AP.
Supreeta N.
2 Euler Angles Consider two initially coincident reference frames, A and B. Frame B is then rotated about the Z axis by π/4 radians. a) Sketch the coordinate frames A and B after the rotation. b) Write the rotation matrix RAB that will take a point from the B frame and represent it in the A frame. c) Write the rotation matrix RBA. d) What are the coordinates in frame A of a point with coordinates pB = [0, 0, 1]T given with respect to frame B? e) What are the coordinates in frame B of a point with coordinates pA = [0, 0, 1]T given with respect to frame A?
