1. What is the lightest I-Beam from Hibbeler's tables that will support the beam loading based on the shear and moment diagrams as shown? We would like to use steel with an allowable bending stress of 185 MPa and an allowable shear stress is 360 MPa. $I = \frac{mc}{I}$ $I = \frac{s}{c} = \frac{m}{\sigma}$ $\boxed{S = \frac{M_{max}}{\sigma_{allow}}}$ $S = \frac{92.4 \text{ kN} \cdot \text{m} \cdot (1000 \frac{N}{kN}) (1000 \frac{mm}{m})}{185 \text{ MPa}} \approx 499.46 \cdot 10^3$
Added by Kimberly A.
Close
Step 1
First, we need to determine the maximum bending moment and shear force in the beam. We can do this by analyzing the given shear and moment diagrams. Show more…
Show all steps
Your feedback will help us improve your experience
Varsha Aggarwal and 68 other Physics 103 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Assume you have a simply supported W12x72 steel beam. The beam spans 20 feet and carries a distributed load of 200 pounds per foot. The modulus of elasticity of steel is 29,000,000 psi. Calculate the following: Maximum Moment Maximum Shear Maximum Bending Stress Maximum Deflection
Adi S.

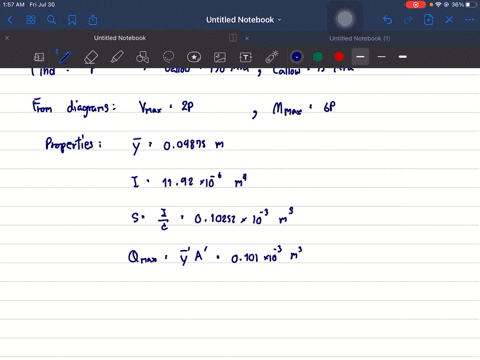

The steel cantilevered T-beam is made from two plates welded together as shown. Determine the maximum loads $P$ that can be safely supported on the beam if the allowable bending stress is $\sigma_{\text {allow }}=170$ MPa and the allowable shear stress is $\tau_{\text {allow }}=95 \mathrm{MPa}.$
If the $\mathrm{W} 360 \times 45$ beam is made from steel having an allowable normal stress of $\sigma_{\text {allow }}=150 \mathrm{MPa}$ and an allowable shear stress of $\tau_{\text {allow }}=85$ MPa, determine the maximum cable force $\mathbf{P}$ that can safely be supported by the beam.
