1. With the aid of delta and star connection diagrams, state the basic equations from which the delta–star and star–delta conversion equations can be derived. 2. Three resistors having resistances 50 ?, 100 ? and 150 ? are star-connected to terminals A, B and C respectively. Calculate the resistances of equivalent delta-connected resistors. 3. Transform the delta shown in figure (a) to the Y (star) shown in figure (b). a) R1=20 ?, R2=30 ? & R3=50 ? b) R1=R2=R3=36 ?
Added by Rodney P.
Close
Step 1
The basic equations for delta-star and star-delta conversion can be derived from the following relationships: For delta-star conversion: Ra = (R1 * R2) / (R1 + R2 + R3) Rb = (R2 * R3) / (R1 + R2 + R3) Rc = (R3 * R1) / (R1 + R2 + R3) For star-delta conversion: R1 Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 79 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

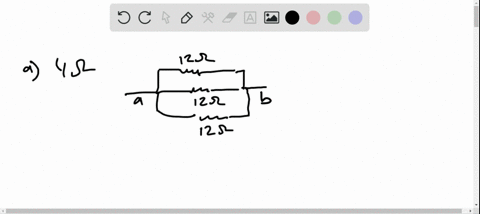

1 You have three $12 \Omega$ resistors. Draw diagrams showing how you could arrange all three so that their equivalent resistance is (a) $4.0 \Omega,$ (b) $8.0 \Omega,$ (c) $18 \Omega,$ and (d) $36 \Omega$.

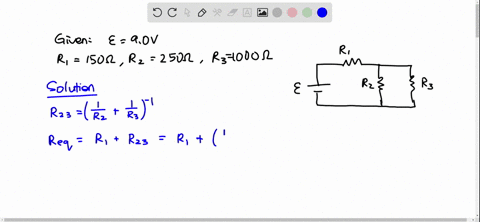

Refer to the accompanying diagram (Figure $\mathrm{Pl} 7.58$ ). If $\mathcal{E}=9.0 \mathrm{~V}, R_{1}=150 \Omega, R_{2}=250 \Omega,$ and $R_{3}=1000 \Omega$ find the current in each resistor.

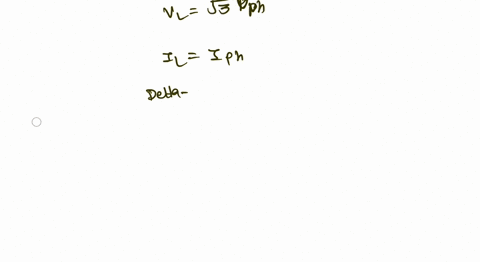

Three similar resistors connected in star draw a line current of 10 A from a 380-V 3-phase mains. To what value should the line voltage be changed to obtain the same line current with the resistors connected in delta?
