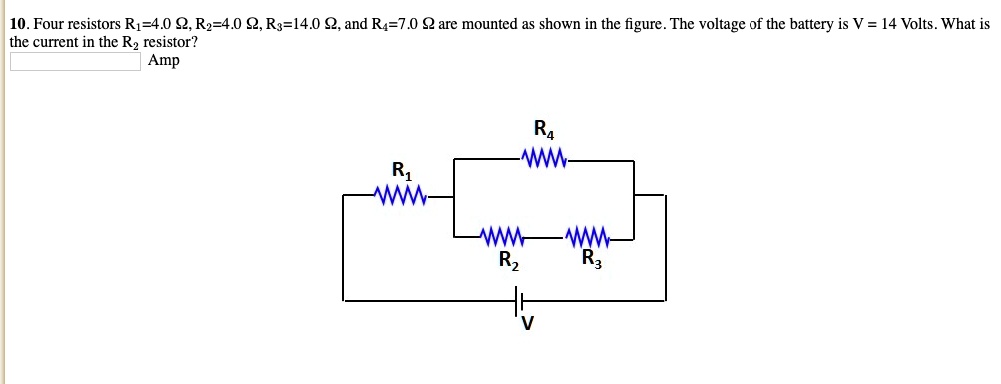

10. Four resistors R1=4.0 ?, R2=4.0 ?, R3=14.0 ?, and R4=7.0 ? are mounted as shown in the figure. The voltage of the battery is V = 14 Volts. What is the current in the R2 resistor? Amp R1 R4 R2 R3 V
Added by Robert S.
Close
Step 1
First, we need to find the total resistance of the circuit. We can do this by adding the resistances of each resistor in series: Rtotal = R1 + R2 + R3 + R4 Rtotal = 4.0 Q + 4.0 Q + 14.0 Q + 7.0 Q Rtotal = 29.0 Q Show more…
Show all steps
