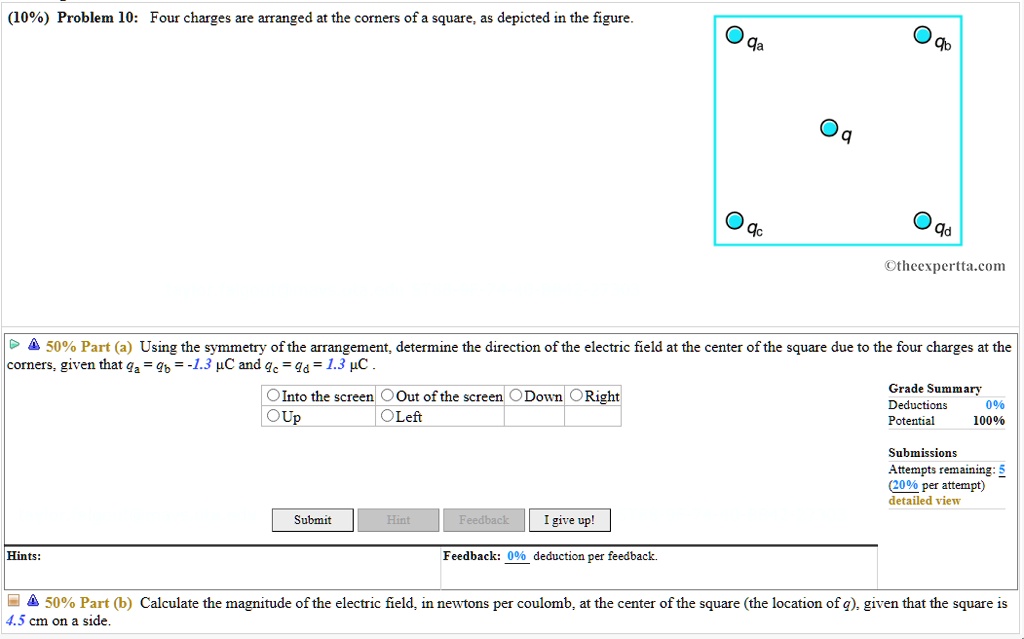

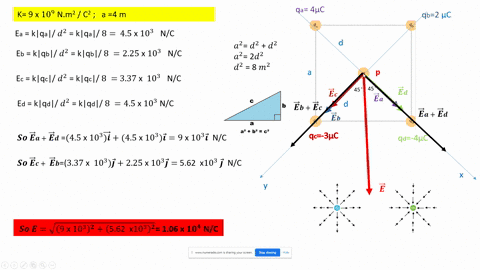

(10%) Problem 10: Four charges are arranged at the corners of a square, as depicted in the figure. (figure labels: q_a at top-left, q_b at top-right, q_c at bottom-left, q_d at bottom-right, q at center) 50% Part (a) Using the symmetry of the arrangement, determine the direction of the electric field at the center of the square due to the four charges at the corners, given that q_a = q_b = -1.3 ?C and q_c = q_d = 1.3 ?C. Options: Into the screen Out of the screen Down Right Up Left 50% Part (b) Calculate the magnitude of the electric field, in newtons per coulomb, at the center of the square (the location of q), given that the square is 4.5 cm on a side.

          (10%) Problem 10: Four charges are arranged at the corners of a square, as depicted in the figure.

(figure labels: q_a at top-left, q_b at top-right, q_c at bottom-left, q_d at bottom-right, q at center)

50% Part (a) Using the symmetry of the arrangement, determine the direction of the electric field at the center of the square due to the four charges at the corners, given that q_a = q_b = -1.3 ?C and q_c = q_d = 1.3 ?C.

Options: Into the screen  Out of the screen  Down  Right  Up  Left

50% Part (b) Calculate the magnitude of the electric field, in newtons per coulomb, at the center of the square (the location of q), given that the square is 4.5 cm on a side.

(10%) Problem 10: Four charges are arranged at the corners of a square, as depicted in the figure.

(figure labels: qa at top-left, qb at top-right, qc at bottom-left, qd at bottom-right, q at center)

50% Part (a) Using the symmetry of the arrangement, determine the direction of the electric field at the center of the square due to the four charges at the corners, given that qa = qb = -1.3 ?C and qc = qd = 1.3 ?C.

Options: Into the screen Out of the screen Down Right Up Left

50% Part (b) Calculate the magnitude of the electric field, in newtons per coulomb, at the center of the square (the location of q), given that the square is 4.5 cm on a side.
