2. Consider the following transfer function $G_1(s) = \frac{100}{s^2 + 20s + 100}$, $G_2(s) = \frac{100}{s^2 + 10s + 100}$ A) Please determine which kind of response do the systems have, respectively? Underdamped, undamped, critically damped or overdamped? B) Please write, in general terms, the step responses of the systems.
Added by Donald V.
Close
Step 1
The characteristic equation is obtained by setting the denominator of the transfer function equal to zero. For the given transfer function, the denominator is s^2 + 10s + 100. Show more…
Show all steps
Your feedback will help us improve your experience
Prem Bijarniya and 101 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Q-1 Determine which of the following second-order systems are underdamped, which are critically damped, and which are overdamped. Explain your answers. [25 pts.] a) T(s) = (9s^2+3s+10)/(s^2+5s+2) b) T(s) = (s^2-2s)/(s^2+6s+9) c) T(s) = 64/(3s^2+4s+5) d) T(s) = (19s-20)/(s^2+s+100) e) T(s) = (s^2+2s+100)/(s^2+7s+49)
Madhur L.
Adi S.

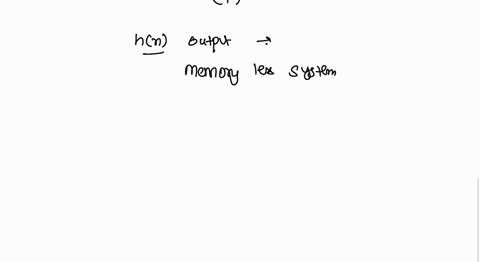

Problem 1 (20 points) The following are the impulse responses of LTI systems. Determine whether each system are stable and/or memoryless and/or casual. (a) h[n] = n (1/4)^n u[n] (b) h[n] = 2^n u[-n] (c) h(t) = te^-t u(-t) (d) h(t) = e^-5|t|
