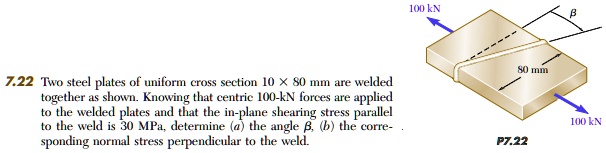

7.22 Two steel plates of uniform cross section 10 × 80 mm are welded together as shown. Knowing that centric 100-kN forces are applied to the welded plates and that the in-plane shearing stress parallel to the weld is 30 MPa, determine (a) the angle ?, (b) the corresponding normal stress perpendicular to the weld.
Added by Angela R.
Close
Step 1
We have two steel plates welded together, subjected to a centric force of 100 kN. The in-plane shearing stress (τ) parallel to the weld is given as 30 MPa. We need to find the angle β and the normal stress (σ) perpendicular to the weld. Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 82 other Physics 103 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

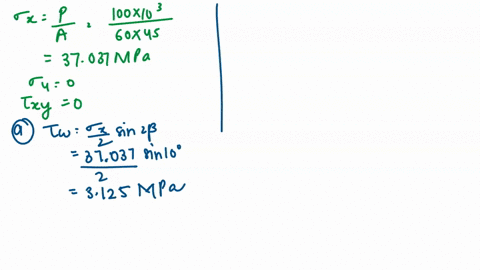

Two steel plates of uniform cross section A x B are welded together as shown. Knowing that centric P (in kN) forces are applied to the welded plates with the angle β, determine: (a) the in-plane shearing stress parallel to the weld and the normal stress perpendicular to the weld (10 points). (b) Draw Mohr's circle for the state of stress exhibiting the welded surface state (10 points).
Sri K.

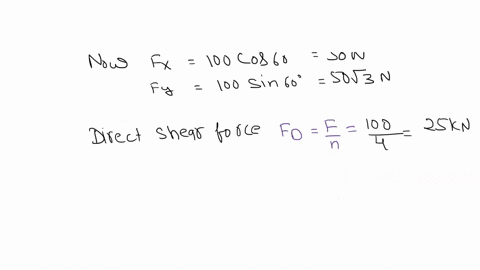

A bracket in the form of a plate is fitted to a column by means of four rivets of the same size as shown in Fig. A load of 100 KN is applied to the bracket at an angle of 60° to the horizontal and the line of action of the load passes through the centre of the bottom rivet. If the maximum shear stress for the material of the rivet is 70 MPa, find the diameter of rivets. What will be the thickness of the plate if the crushing stress is 100 MPa? 80 80 80 All dimensions in mm
