Question

10 V I 1 ?? VOUT VA 10 ?? Q1 VB 10 ?? Q2 Figure 1: TTL digital logic circuit for Problem 1. (a) Fill out the fololwing table below. VA VB Q1 is (off/act/sat) Q2 is (off/act/sat) I [mA] VOUT [V] 0 V 0 V 0 V 10 V 10 V 0 V 10 V 10 V (b) Assuming any V > 8 V is binary "1" and V < 1 V is binary "0," what boolean operation does this circuit perform (AND/OR/XOR/NAND/NOR)?

          10 V
I
1 ??
VOUT
VA
10 ??
Q1
VB
10 ??
Q2

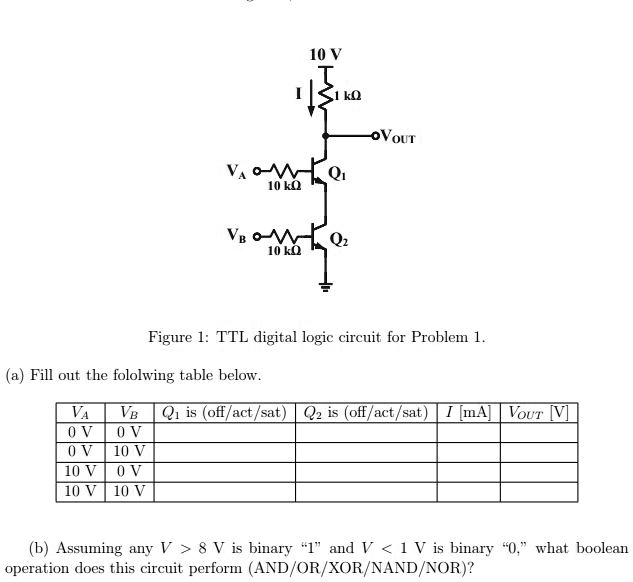

Figure 1: TTL digital logic circuit for Problem 1.
(a) Fill out the fololwing table below.
VA
VB
Q1 is (off/act/sat)
Q2 is (off/act/sat)
I [mA]
VOUT [V]
0 V
0 V
0 V
10 V
10 V
0 V
10 V
10 V
(b) Assuming any V > 8 V is binary "1" and V < 1 V is binary "0," what boolean
operation does this circuit perform (AND/OR/XOR/NAND/NOR)?

10 V
I
1 ??
VOUT
VA
10 ??
Q1
VB
10 ??
Q2
Figure 1: TTL digital logic circuit for Problem 1.
(a) Fill out the fololwing table below.
VA
VB
Q1 is (off/act/sat)
Q2 is (off/act/sat)
I [mA]
VOUT [V]
0 V
0 V
0 V
10 V
10 V
0 V
10 V
10 V
(b) Assuming any V > 8 V is binary "1" and V < 1 V is binary "0," what boolean
operation does this circuit perform (AND/OR/XOR/NAND/NOR)?

Added by Luis V.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Frank Deng

Step 1

- VB is connected to OVOUT, so VB = OVOUT. - Qi is connected to VMQ, so Qi = VMQ. - VBoQ is connected to 10V, so VBoQ = 10V. - Q2 is connected to VOUT, so Q2 = VOUT. Now let's fill out the table: | VA | VB | Qi | VBoQ | Q2 Show more…

Show all steps

Thanks for your feedback!

Text: 10V OVOUT VMQ 10kÎ© VBoQ 10kÎ© Figure 1: TTL digital logic circuit for Problem 1 a Fill out the following table below VA VB Qi is off/act/sat OV OV OV 10V 10V OV 10V Q2 is (off/act/sat) mA VOUT b Assuming any V>8 V is binary 1 and V<1 V is binary 0, what boolean operation does this circuit perform (AND/OR/XOR/NAND/NOR)?
