10. Write the phasor equation of the circuit shown in Figure 10, using loop method in figure (a)

Question

Madhur L · Answer

Hi, the inductive reactants xL is equal to j omega l, that is equal to j into 10 to the power 4

Sri K · Answer

so here we are considering the circuit which is shown here this is 2 ohm resistor which is conne

Sri K · Answer

let&#x27;s start the question here node voltage equation is given node voltage equation in such type

Sri K · Answer

Here we have given the circuit as this is the resistance here and here this is the second resist

Darshan Maheshwari · Answer

state kvl equations for the loop as shown and state the kv start a kv at node b and kcel from no

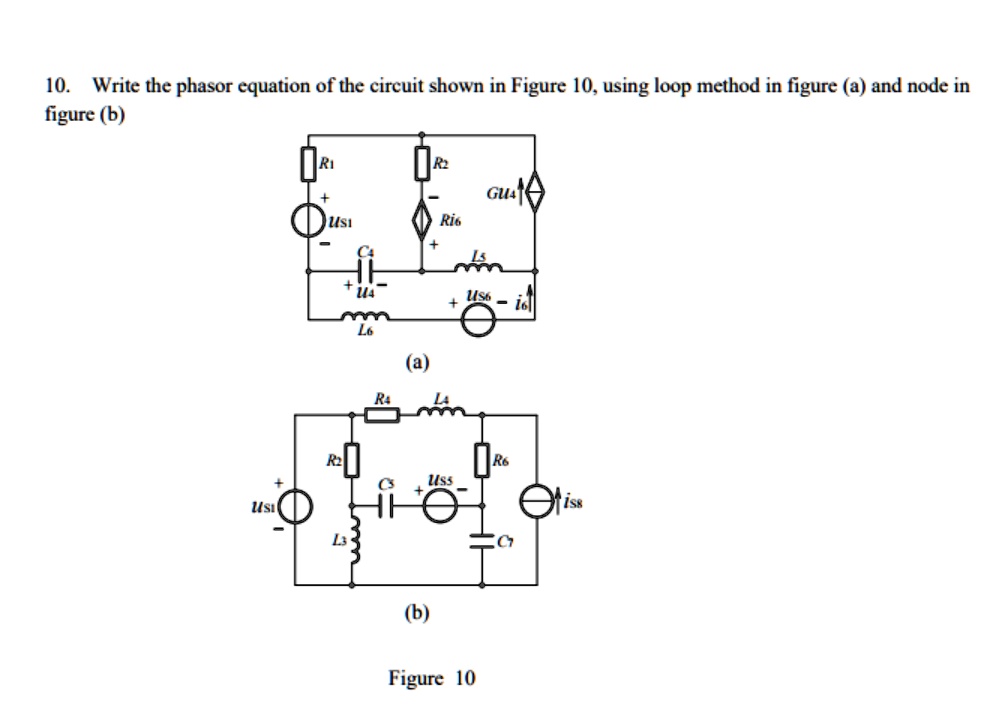

10. Write the phasor equation of the circuit shown in Figure 10, using loop method in figure (a) and node in figure (b)
