*11-32. The smooth pin is supported by two leaves A and B and subjected to a compressive load of 0.4 kN/m caused by bar C. Determine the intensity of the distributed load $w_0$ of the leaves on the pin and draw the shear and moment diagram for the pin.
Added by Cesar H.
Close

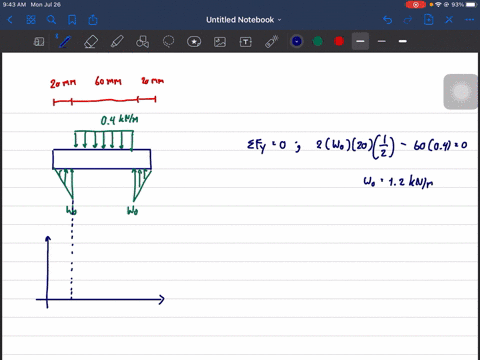

Step 1
The total compressive load on the pin from bar C is $0.4L$ kN. Since the pin is supported by two leaves A and B, each leaf carries half of the load, which is $0.2L$ kN. Show more…
Show all steps
