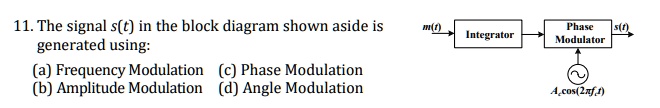

11. The signal s(t) in the block diagram shown aside is generated using: (a) Frequency Modulation (c) Phase Modulation (b) Amplitude Modulation (d) Angle Modulation
Added by Christian T.
Close
Step 1
The input signal to the integrator is m(t), which represents the message signal. Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 57 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
An angle-modulated signal is represented in the time domain as s(t) = 10cos(2πft + 3sin(2πmt)). a) Assume the given signal is frequency modulated. Calculate the frequency deviation, modulation index, bandwidth, and total power. b) Repeat the above calculations when the signal is phase modulated.
Sri K.
Figure below shows the block diagram of a DSB-SC modulator. Note that the oscillator generates cos(3(2πf_c t)). The message spectrum is also shown. Draw and label the spectrum (Fourier transform) of y(t).
Madhur L.
'A basic modulator circuit is shown in Figure Q8). Modulation is multiplication between data signal. m(t) and a carrier signal. c(t) The process yields a new signal, v(t) Q8 Analyze the Fourier Transform of the signal v(t) by using modulation properties. Sketch the spectrum of signal v(t). m(t) = 1 v(t) c(t) = cOS Wct Figure Q8(a)'
Ameer S.
