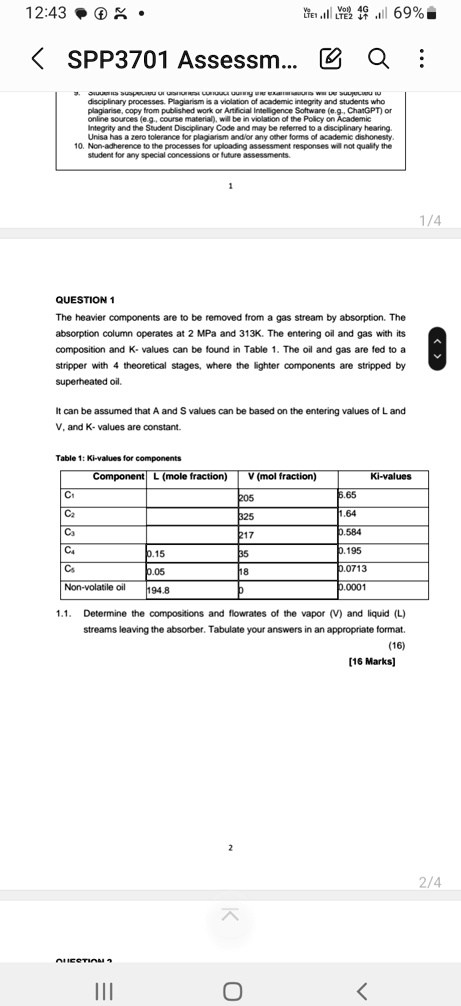

QUESTION 1
The heavier components are to be removed from a gas stream by absorption. The
absorption column operates at 2 MPa and 313K. The entering oil and gas with its
composition and K- values can be found in Table 1. The oil and gas are fed to a
stripper with 4 theoretical stages, where the lighter components are stripped by
superheated oil.
It can be assumed that A and S values can be based on the entering values of L and
V, and K- values are constant.
Table 1: Ki-values for components
Component L (mole fraction) V (mol fraction)
Ki-values
C1
205
6.65
C2
325
1.64
C3
217
0.584
C4
0.15
35
0.195
C5
0.05
18
0.0713
Non-volatile oil
194.8
0
0.0001
1.1. Determine the compositions and flowrates of the vapor (V) and liquid (L)
streams leaving the absorber. Tabulate your answers in an appropriate format.
(16)
[16 Marks]
