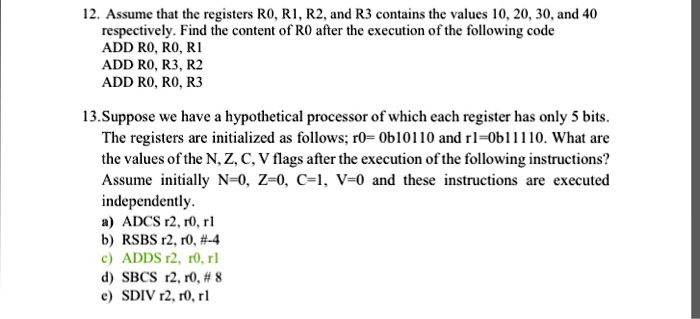

12. Assume that the registers R0, R1, R2, and R3 contains the values 10, 20, 30, and 40 respectively. Find the content of R0 after the execution of the following code ADD R0, R0, R1 ADD R0, R3, R2 ADD R0, R0, R3 13.Suppose we have a hypothetical processor of which each register has only 5 bits. The registers are initialized as follows; r0= 0b10110 and r1=0b11110. What are the values of the N, Z, C, V flags after the execution of the following instructions? Assume initially N=0, Z=0, C=1, V=0 and these instructions are executed independently. a) ADCS r2, r0, r1 b) RSBS r2, r0, #-4 c) ADDS r2, r0, r1 d) SBCS r2, r0, # 8 e) SDIV r2, r0, r1
Added by Hannah H.
Close
Step 1
Step 1: Read the initial values of the registers: R0 = 10, R1 = 20, R2 = 30, R3 = 40. Show more…
Show all steps
