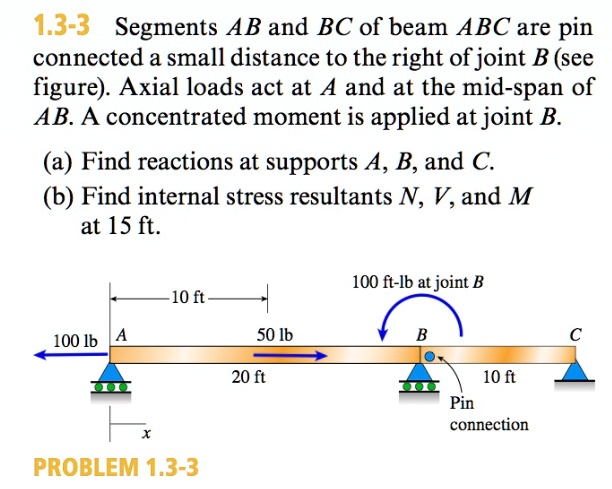

Segments AB and BC of beam ABC are pin connected a small distance to the right of joint B (see figure). Axial loads act at A and at the mid-span of AB. A concentrated moment is applied at joint B. (a) Find reactions at supports A, B, and C. (b) Find internal stress resultants N, V, and M at 15 ft.

          Segments AB and BC of beam ABC are pin connected a small distance to the right of joint B (see figure). Axial loads act at A and at the mid-span of AB. A concentrated moment is applied at joint B.

(a) Find reactions at supports A, B, and C.
(b) Find internal stress resultants N, V, and M at 15 ft.

Segments AB and BC of beam ABC are pin connected a small distance to the right of joint B (see figure). Axial loads act at A and at the mid-span of AB. A concentrated moment is applied at joint B.

(a) Find reactions at supports A, B, and C.
(b) Find internal stress resultants N, V, and M at 15 ft.

Added by Louis L.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Priyanka Khokher

01/26/2022

Step 1

- Beam ABC is pin-connected at A, B, and C. - Axial loads: 100 lb at A and 50 lb at the mid-span of AB. - A concentrated moment of 100 ft-lb is applied at joint B. - Lengths: AB = 20 ft, BC = 10 ft. Show more…
