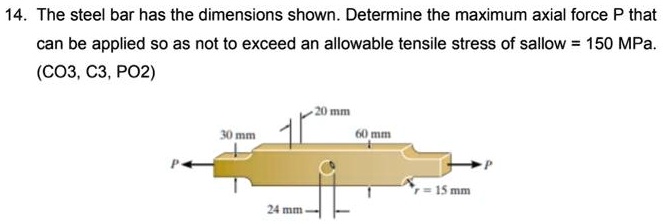

14. The steel bar has the dimensions shown. Determine the maximum axial force P that can be applied so as not to exceed an allowable tensile stress of $s_{allow} = 150 \text{ MPa}$. (CO3, C3, PO2)

          14. The steel bar has the dimensions shown. Determine the maximum axial force P that can be applied so as not to exceed an allowable tensile stress of $s_{allow} = 150 \text{ MPa}$.
(CO3, C3, PO2)
14. The steel bar has the dimensions shown. Determine the maximum axial force P that can be applied so as not to exceed an allowable tensile stress of sallow = 150 MPa. (CO3, C3, PO2)

Added by Joshua K.

Close

University Physics with Modern Physics
University Physics with Modern Physics
Hugh D. Young 14th Edition
AceChat toggle button
Close icon
Ace pointing down

Please give Ace some feedback

Your feedback will help us improve your experience

Thumb up icon Thumb down icon
Thanks for your feedback!
Profile picture
The steel bar has the dimensions shown. Determine the maximum axial force P that can be applied so as not to exceed an allowable tensile stress of sallow = 150 MPa (CO3, C3, PO2).
Close icon
Play audio
Feedback
Powered by NumerAI
Jennifer Stoner Ivan Kochetkov
Danielle Fairburn verified

Chai Santi and 73 other subject Physics 101 Mechanics educators are ready to help you.

Ask a new question
*

Labs

-

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs
*

Key Concepts

-
Key Concept
Premium Feature
Explore the core concept behind this problem.
Play button
Key Concept
Premium Feature
Explore the core concept behind this problem.
Your browser does not support the video tag.
*

Recommended Videos

-
the-steel-bar-has-the-dimensions-shown-determine-the-maximum-axial-force-p-that-can-be-applied-so-as

The steel bar has the dimensions shown. Determine the maximum axial force $P$ that can be applied so as not to exceed an allowable tensile stress of $\sigma_{\text {allow }}=150 \mathrm{MPa}$.

Mechanics of Materials

a-centric-axial-force-is-applied-to-the-steel-bar-shownknowing-that-is-135-mpadetermine-the-maximum-allowable-load-p-10mm-uu-06-120m-66618

Sri K.
determine-the-maximum-axial-force-p-that-can-be-applied-to-the-bar-the-bar-is-made-from-steel-and-has-an-allowable-stress-of-iallow-21-ksi-08442

Determine the maximum axial force P that can be applied to the bar. The bar is made from steel and has an allowable stress of σallow = 21 ksi.

Shelayah R.
*

Recommended Textbooks

-
University Physics with Modern Physics

University Physics with Modern Physics

Hugh D. Young 14th Edition
achievement 1,648 solutions
Physics: Principles with Applications

Physics: Principles with Applications

Douglas C. Giancoli 7th Edition
achievement 1,420 solutions
Fundamentals of Physics

Fundamentals of Physics

David Halliday, Robert Resnick , Jearl Walker 10th Edition
achievement 1,529 solutions
*

Transcript

-
00:01 In this question, we have to find the maximum force speed that can be applied so that it is not the stress that not exceeds the allowable stress of 150 megapastal.
00:16 So first, there are two points that could be failure.
00:24 First is the fillet point and the second is the whole point.
00:28 So for the fillet, we have to find the ratio k from the bill over h is 60 over 30 that is 2 and r over edge which is 15 and edge is 30 which is 15 and edge is 30 is 0 .5 so from the textbook k is 1 .4.
00:56 Now, have that the allowable stretch is equal to k times the average stress...
