14) Now also assume the mass of the foot is 1.93 kg and the moment of inertia of the foot about the ankle is 0.04 kg?m². Also assume the angular acceleration of the foot is 110 rad/s². What is the joint torque (units of N?m) acting on the foot about the ankle? Use the FBD below.
Added by Silvia N.
Close
Step 1
We are given the mass of the foot (1.93 kg), the moment of inertia of the foot about the ankle (0.04 kg-m^2), and the angular acceleration of the foot (110 rad/s^2). We are asked to find the joint torque acting on the foot about the ankle. Show more…
Show all steps
Your feedback will help us improve your experience
Supreeta N and 86 other Physics 103 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

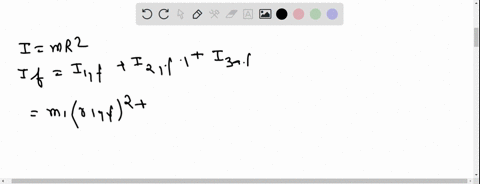

The amount of torque required by an external applied force (other than gravity) to move a leg forward is less than that required to move it backward if the leg is bent as shown in Figure $\mathrm{P} 8.80 .$ The lengths of the vectors $\overrightarrow{\boldsymbol{r}}_{1}, \overrightarrow{\boldsymbol{r}}_{2},$ and $\overrightarrow{\boldsymbol{r}}_{3}$ indicate the position of the center of mass of the upper leg, lower leg, and foot from the axis of rotation. The ratio of the mass of the upper leg/lower leg/foot is approximately $5 / 3 / 1 .$ Find the ratio of the moment of inertia for the leg moving forward to that of the leg moving backward. Approximate the three parts of the leg as point masses.
Rotational Motion
Combined Rotational and Translational Motion
A torque of 2.00 N•m is applied to a 10.0 kg object to give it an angular acceleration. If the angular acceleration is 1.75 rad/s2, then the moment of inertia is
Nishant K.

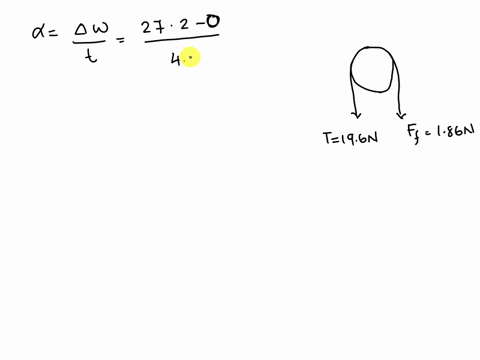

12. A large pulley of mass 5.21 kg (its mass cannot be neglected) is rotated by a constant Tension force of 19.6 N in the counterclockwise direction. The rotation is resisted by the frictional torque of the axle on the pulley. The frictional torque is a constant 1.86 N-m in the clockwise direction. The pulley accelerates from 0 to 27.2 rad/s in 4.11 s. Find the moment of inertia of the pulley.
Supreeta N.
