Air contained in a piston-cylinder assembly undergoes the power cycle shown in the figure below. Assuming ideal gas behavior for the air, evaluate the thermal efficiency of the cycle
Added by Scott F.
Close
Step 1
5 P (bar) Isothermal process Show more…
Show all steps
Your feedback will help us improve your experience
Manik Pulyani and 56 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
A system consisting of $1 \mathrm{~kg}$ of $\mathrm{H}_{2} \mathrm{O}$ undergoes a power cycle composed of the following processes: Process 1-2: Constant-pressure heating at 10 bar from saturated vapor. Process 2-3: Constant-volume cooling to $p_{3}=5$ bar, $T_{3}=160^{\circ} \mathrm{C}$. Process 3-4: Isothermal compression with $Q_{34}=-815.8 \mathrm{~kJ}$ Process $4-1:$ Constant-volume heating. Sketch the cycle on $T-v$ and $p-v$ diagrams. Neglecting kinetic and potential energy effects, determine the thermal efficiency.
Evaluating Properties
Problems: Developing Engineering Skills

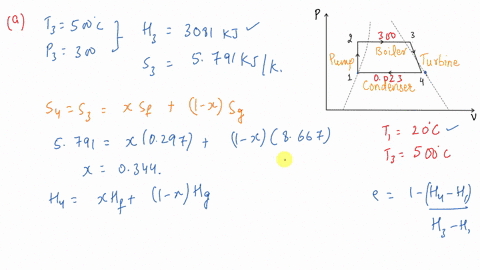

Calculate the efficiency of a Rankine cycle that is modified from the parameters used in the text in each of the following three ways (one at a time), and comment briefly on the results: (a) reduce the maximum temperature to $500^{\circ} \mathrm{C} ;$ (b) reduce the maximum pressure to 100 bars; (c) reduce the minimum temperature to $10^{\circ} \mathrm{C}$
Engines and Refrigerators
Real Heat Engines

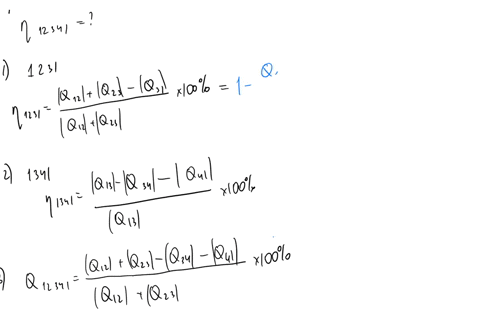

The efficiency of a thermodynamic cycle 1-2-3-1 (see picture) is 20% and for another thermodynamic cycle 1-3-4-1, the efficiency is equal to 10%. Determine the efficiency η (in %) of the thermodynamic cycle 1-2-3-4-1. The gas is assumed to be ideal. (1) 28 (2) 24 (3) 22
