\[ 1500 \mathrm{lb} \] FIG. P1.13 FIG. P1. 14 1.13 Determine the mass of the heaviest uniform cylinder that can be supported in the position shown without exceeding a stress of \( 50 \mathrm{MPa} \) in cable \( B C \). Neglect friction and the weight of bar \( A B \). The cross-sectional area of \( B C \) is \( 100 \mathrm{~mm}^{2} \).

          \[
1500 \mathrm{lb}
\]

FIG. P1.13
FIG. P1. 14
1.13 Determine the mass of the heaviest uniform cylinder that can be supported in the position shown without exceeding a stress of \( 50 \mathrm{MPa} \) in cable \( B C \). Neglect friction and the weight of bar \( A B \). The cross-sectional area of \( B C \) is \( 100 \mathrm{~mm}^{2} \).

1500 lb

FIG. P1.13
FIG. P1. 14
1.13 Determine the mass of the heaviest uniform cylinder that can be supported in the position shown without exceeding a stress of 50 MPa in cable B C. Neglect friction and the weight of bar A B. The cross-sectional area of B C is 100 mm^2.

Added by David P.

Physics for Scientists and Engineers with Modern Physics

Raymond A. Serway, John W. Jewett, Jr. 8th Edition

Chapter 12

Instant Answer

Solved by Expert Jaya M

Step 1

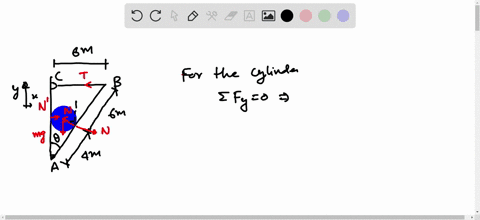

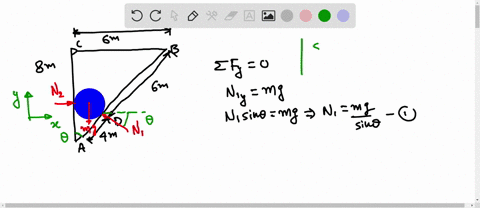

The problem asks us to determine the mass of the heaviest uniform cylinder that can be supported without exceeding a stress of 50 MPa in cable BC. We are given that the cross-sectional area of cable BC is 100 mm² and to neglect the weight of bar AB and friction. Show more…

Show all steps

Thanks for your feedback!

\[ 1500 \mathrm{lb} \] FIG. P1.13 FIG. P1. 14 1.13 Determine the mass of the heaviest uniform cylinder that can be supported in the position shown without exceeding a stress of \( 50 \mathrm{MPa} \) in cable \( B C \). Neglect friction and the weight of bar \( A B \). The cross-sectional area of \( B C \) is \( 100 \mathrm{~mm}^{2} \).
