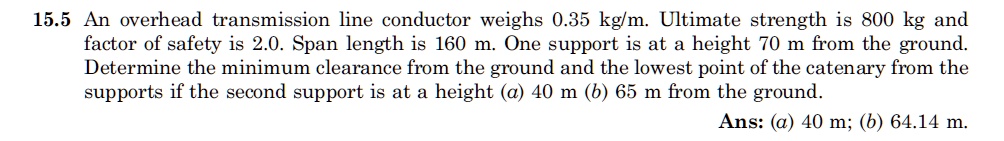

15.5 An overhead transmission line conductor weighs 0.35 kg/m. Ultimate strength is 800 kg and factor of safety is 2.0. Span length is 160 m. One support is at a height 70 m from the ground. Determine the minimum clearance from the ground and the lowest point of the catenary from the supports if the second support is at a height (a) 40 m (b) 65 m from the ground. Ans: (a) 40 m; (b) 64.14 m.
Added by Lindsey P.
Close
Step 1
The maximum tension is given by: \[ T_{max} = \frac{\text{Ultimate strength}}{\text{Factor of safety}} \] \[ T_{max} = \frac{800 \text{ kg}}{2.0} = 400 \text{ kg} \] Show more…
Show all steps
Your feedback will help us improve your experience
Narayan Hari and 70 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

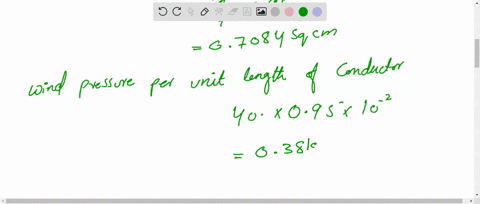

a. An overhead line has the following data: Span length = 160 m Conductor diameter = 0.95 cm Weight per unit length of the conductor = 0.65 kg/m Ultimate stress = 4,250 kg/cm^2 Wind pressure = 40 kg/m^2 Safety factor = 5 Calculate the sag. b. Derive the expression for the lowest point of the catenary curve if the supports are at different levels. Given that the weight of the conductor = 0.35 kg/m. The maximum allowable tension = 800 kg. The span length = 160 m and the safety factor = 2. Find the minimum point of the catenary if the supports are at 70 m and 60 m.
Abid H.

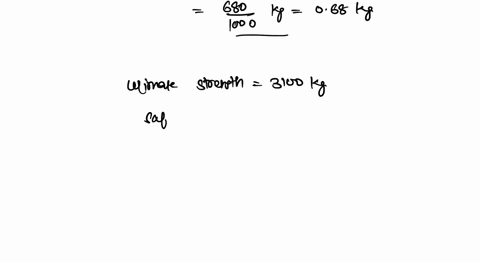

A 132 kV transmission line has the following data: Length of span = 260 m, weight of conductor = 680 kg/km, safety factor = 2, ultimate strength = 3100 kg. Calculate the height above ground at which the conductor should be supported. Ground clearance required is 10 meters.
Sri K.

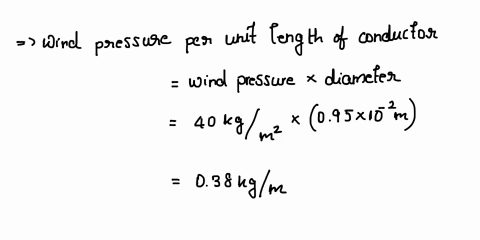

An overhead line has the following data: Span length = 160 m Conductor diameter = 0.95 cm Weight per unit length of the conductor = 0.65 kg/m Ultimate stress = 4,250 kg/cm^2 Wind pressure = 40 kg/m^2 Safety factor = 5 Calculate the sag. Derive the expression for the lowest point of the catenary curve if the supports are at different levels. Given that the weight of the conductor = 0.35 kg/m. The maximum allowable tension = 800 kg. The span length = 160 m, and the safety factor = 2. Find the minimum point of the catenary if the supports are at 70 m and 60 m.
Adi S.
