1.63 A pipe flowing light oil has a manometer attached, as shown in Fig PL.63. What is the absolute pressure in the pipe flow? Po = 101 kPa 0.7 m , Oil Water 0.3 m 0.1 m

Name: 163 a pipe flowing light oil has a manometer attached as shown in fig pl63 what is the absolute pres sure in the pipe flow po 101 kpa 07 m oil water 03 m 01m figure p163 77856
Uploaded: 2022-11-05T16:45:47-08:00
Duration: 3 min 6 s
Channel: Sri K
Description: 163 a pipe flowing light oil has a manometer attached as shown in fig pl63 what is the absolute pres sure in the pipe flow po 101 kpa 07 m oil water 03 m 01m figure p163 77856

          1.63 A pipe flowing light oil has a manometer attached, as shown in Fig PL.63. What is the absolute pressure in the pipe flow?
Po = 101 kPa
0.7 m ,
Oil Water
0.3 m
0.1 m

Added by Ann C.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Sri K

11/05/2022

Step 1

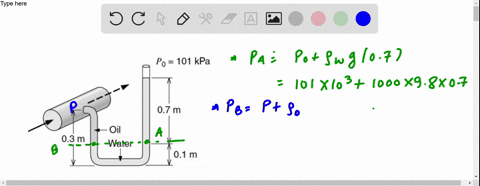

The problem involves light oil and water. The given data includes: - Atmospheric pressure, \( P_0 = 101 \, \text{kPa} \) - Heights of the columns: \( h_{\text{oil}} = 0.7 \, \text{m} \), \( h_{\text{water}} = 0.3 \, \text{m} \), and \( h_{\text{air}} = 0.1 \, Show more…
