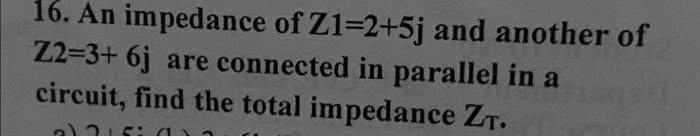

16. An impedance of Z1=2+5j and another of Z2=3+ 6j are connected in parallel in a circuit, find the total impedance Z_T.
Added by Andrew G.
Close
Step 1
The formula for calculating the total impedance Zt of two impedances Z1 and Z2 connected in parallel is: 1/Zt = 1/Z1 + 1/Z2 Let's substitute the given values into the formula: 1/Zt = 1/(2 + 5j) + 1/(3 + 6j) To simplify the equation, we need to find the least Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 66 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
When the resistors in the circuit are placed in series, the total impedance is the sum of the two impedances $Z=Z_{1}+Z_{2} .$ Find the total impedance of the electrical circuit in series.
Prerequisites and Review
COMPLEX NUMBERS

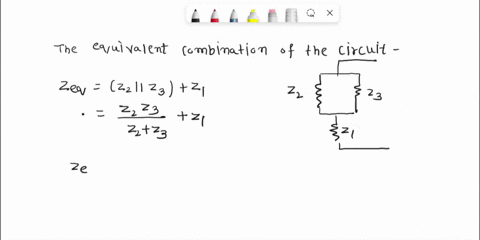

Three impedances Z1 = 1 - j 4, Z2 = - j 6 and Z3 = 4 + j 3 ohms respectively are connected in series parallel. Z1 is connected in series with the parallel combination of Z2 and Z3. Determine the equivalent impedance of the combination. *
Adi S.
Two impedances Z1 and Z2 are connected in parallel. Find the equivalent impedance, if Z1 =7 +j3 ohm and Z2 =17 -j13 ohm .
Sri K.
