Question

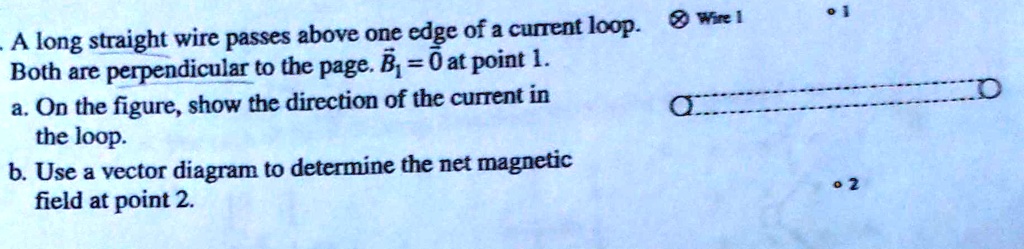

A long straight wire passes above one edge of a current loop. Both are perpendicular to the page. B1 = 0 at point 1. a. On the figure, show the direction of the current in the loop. b. Use a vector diagram to determine the net magnetic field at point 2.

          A long straight wire passes above one edge of a current loop.
Both are perpendicular to the page. B1 = 0 at point 1.
a. On the figure, show the direction of the current in the loop.
b. Use a vector diagram to determine the net magnetic field at point 2.

A long straight wire passes above one edge of a current loop.
Both are perpendicular to the page. B1 = 0 at point 1.
a. On the figure, show the direction of the current in the loop.
b. Use a vector diagram to determine the net magnetic field at point 2.

Added by Anna S.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Timothy James

06/13/2023

Step 1

On the figure, show the direction of the current in the loop. The current flows from left to right. The direction of the magnetic field is perpendicular to the page. Show more…
