1D. A 1000N block A is suspended from a rope that runs around the fixed pegs B and C. The coefficient of friction between the pegs and the rope is µs = 0.25. Determine the total angle of wrap for both pegs and the minimum force P needed to hold the block in static equalibrium. $\beta_{Tot}$ = $P_{Min}$ = P C 40° B A 1000N (3 pts) (2 pts)
Added by Sarah P.
Close
Step 1
For peg B, the angle of wrap is 180 degrees or $\pi$ radians. For peg C, the angle of wrap is also 180 degrees or $\pi$ radians. Show more…
Show all steps
Your feedback will help us improve your experience
Supreeta N and 96 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

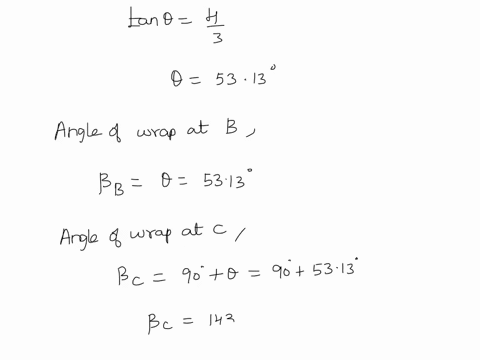

1C) A 100-lb block A is lowered using a rope and two fixed pegs B and C. If the static coefficient of friction between the rope and pegs is μs = 0.3, determine the total angle of wrap (βTot = βB + βC) and the minimum force (Pmin) to barely hold the block in equilibrium. (5 pts) βTot = degrees (3 pts) Pmin = lbs (2pts)
Supreeta N.

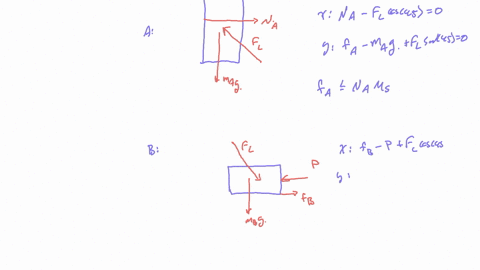

answer the following questions with free body diagram
Sam S.

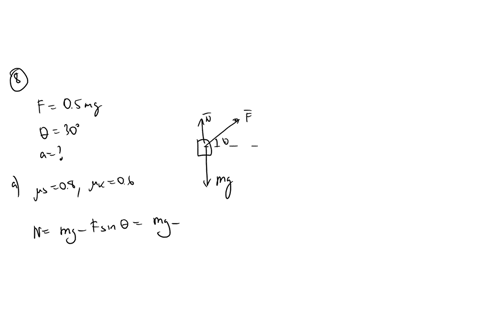

Block B in Figure 4 weighs 711 N. The coefficient of static friction between block and table is 0.25. Angle θ is 30°. Assume that the cord between B and the knot is horizontal. Find the maximum weight of block A for which the system will be stationary. This figure shows an initially stationary block of mass m on a floor. A force of magnitude 0.5 mg is then applied at upward angle θ = 30°. What is the magnitude of the acceleration of the block across the floor if the friction coefficients are a. μs = 0.8 and μk = 0.6 b. μs = 0.5 and μk = 0.4
